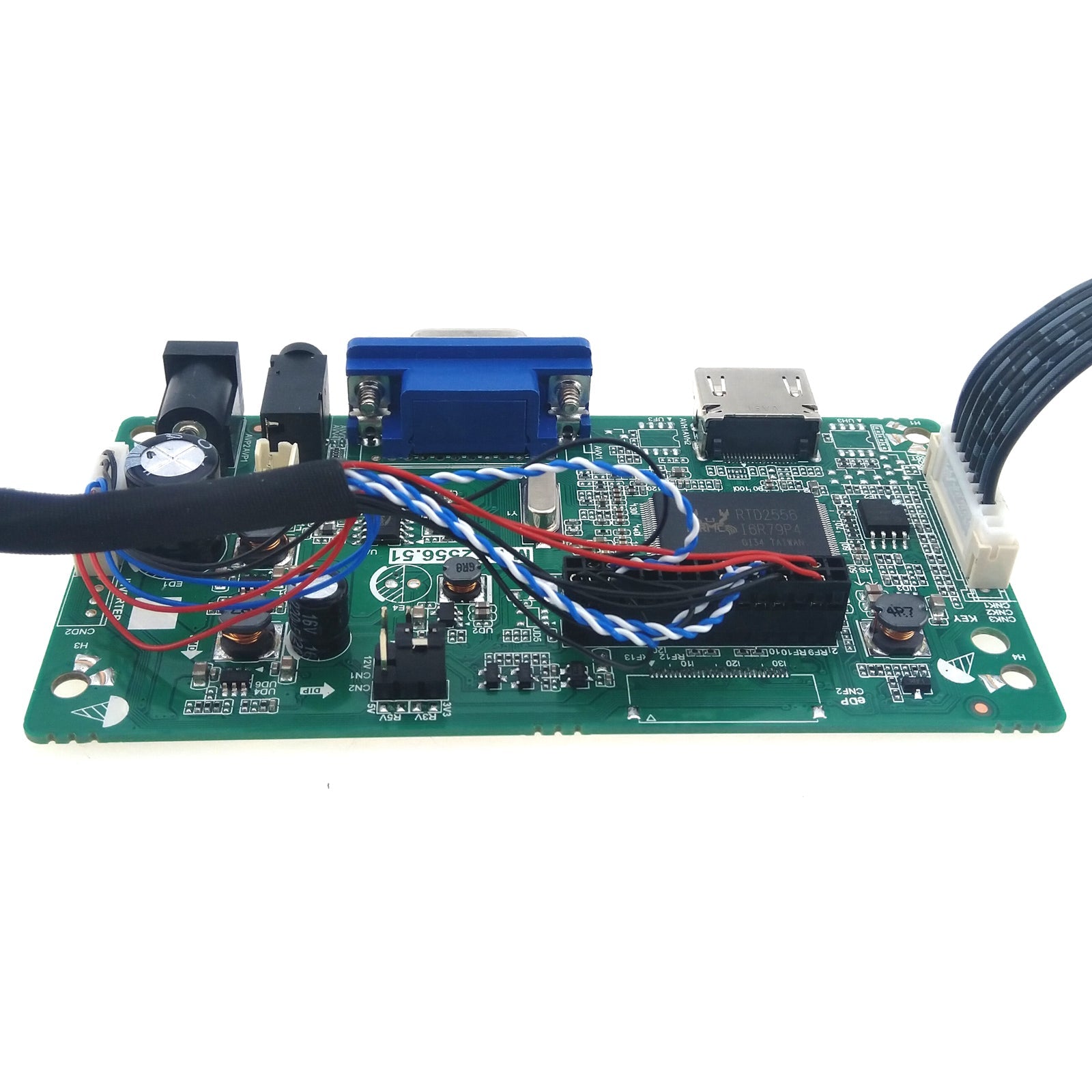

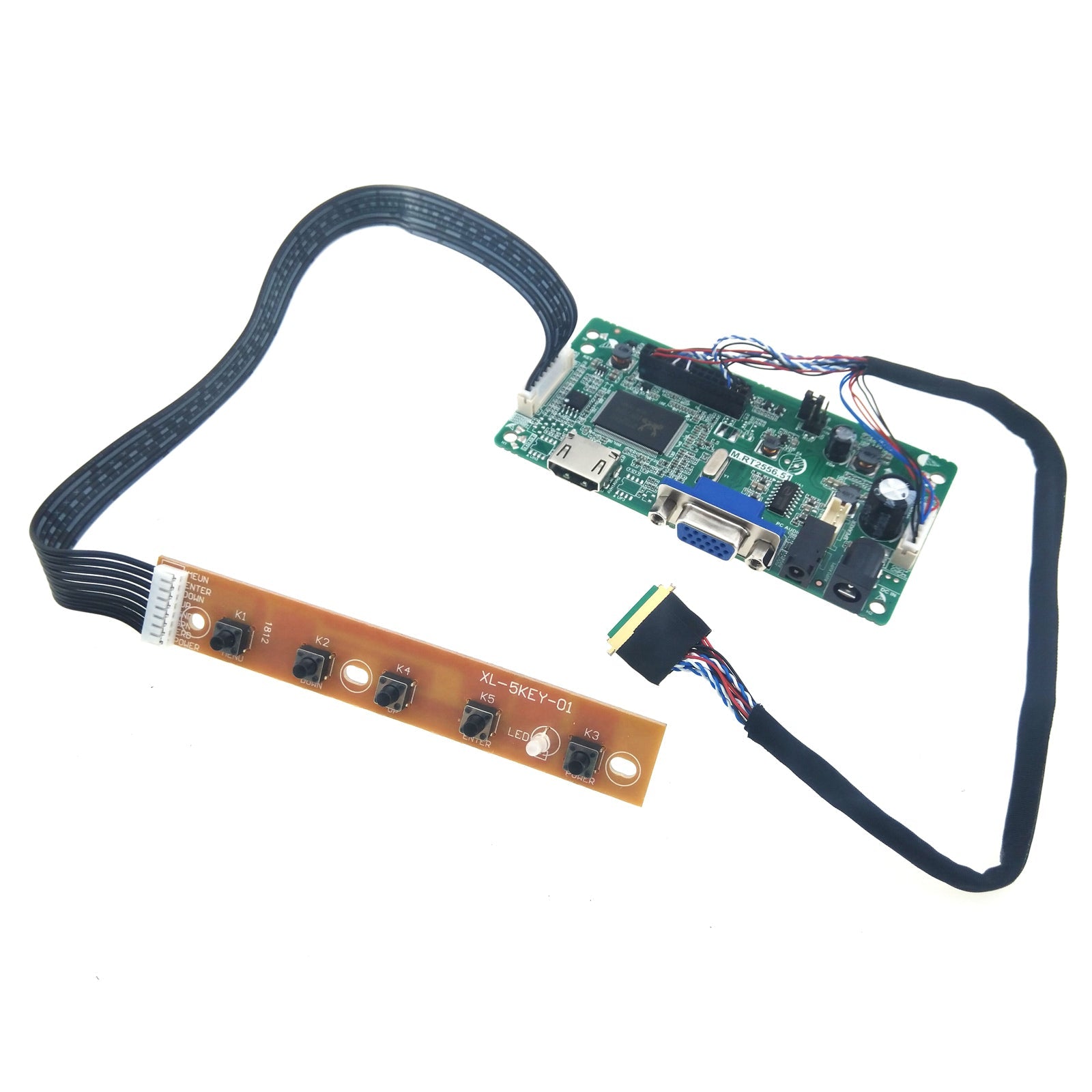

This is eDP controller board for LP156WF6 series LCD panel (like LP156WF6-SPB1, LP156WF6-SPK3, LP156WF6-SPP1... etc). It supports brightness control, plug and play, fast response time, and low working temperature.
Compatibility:
LP156WF6-SPA1
LP156WF6-SPB1/ SPB2/ SPB4/ SPB5/ SPB6/ SPB7
LP156WF6-SPC1
LP156WF6-SPD1
LP156WF6-SPF1
LP156WF6-SPH1/ SPH2/ SPH3
LP156WF6-SPJ1/ SPJ2/ SPJ3
LP156WF6-SPK1/ SPK2/ SPK3/ SPK4/ SPK5/ SPK6
LP156WF6-SPL1/ SPL2
LP156WF6-SPM1/ SPM2/ SPM3/ SPM4/ SPM5
LP156WF6-SPN1
LP156WF6-SPP1/ SPP2
Important Note:
DC connector is 5.5 x 2.1mm, center positive
If you have doubts in operation, please CONTACT US
Features：
Support resolution up to 1920 x 1080 (1080P)
Support eDP voltage 3.3V only, voltage is FIXED

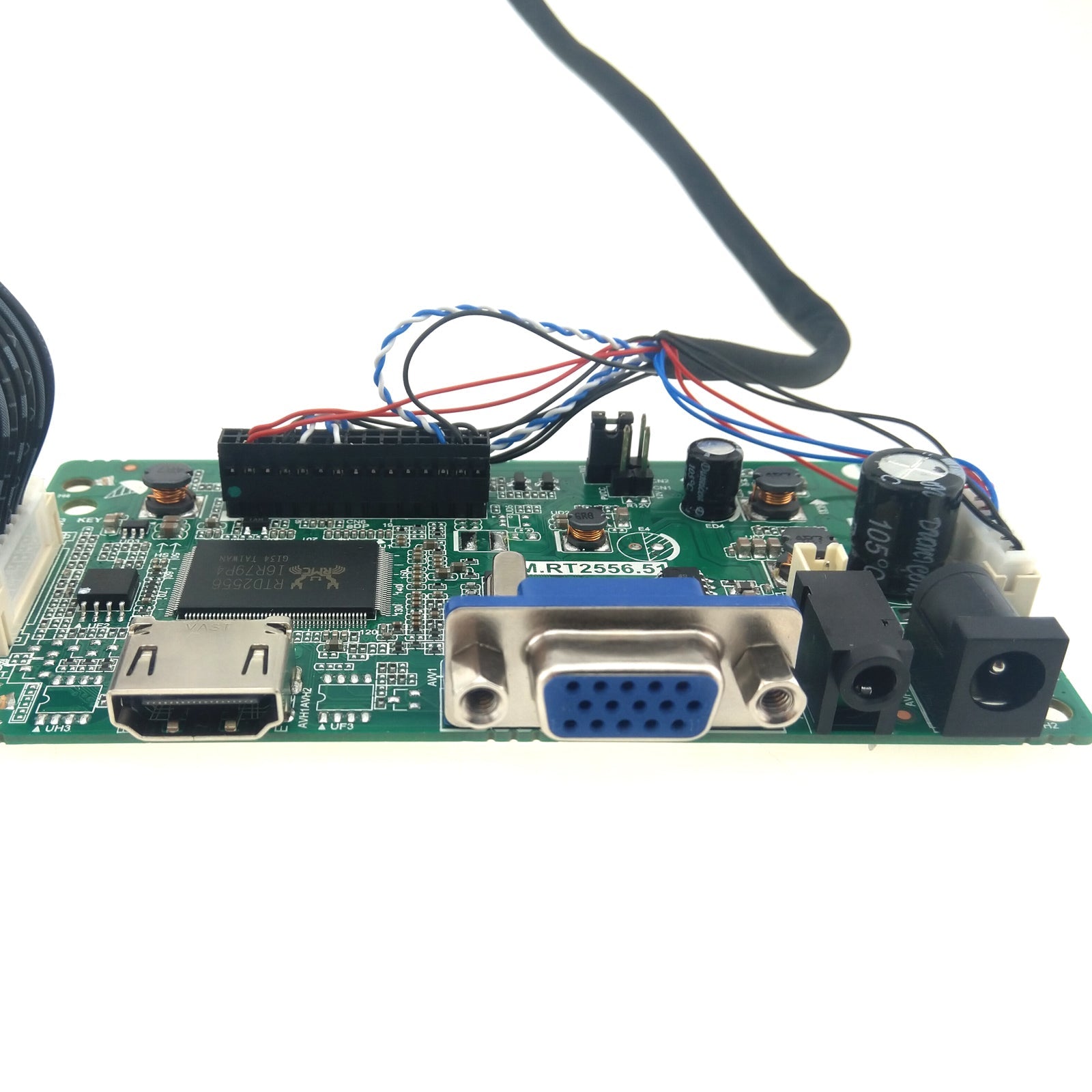

VGA and HDMI video input, 3.5mm audio input, 4-pin speaker header (speaker not included)

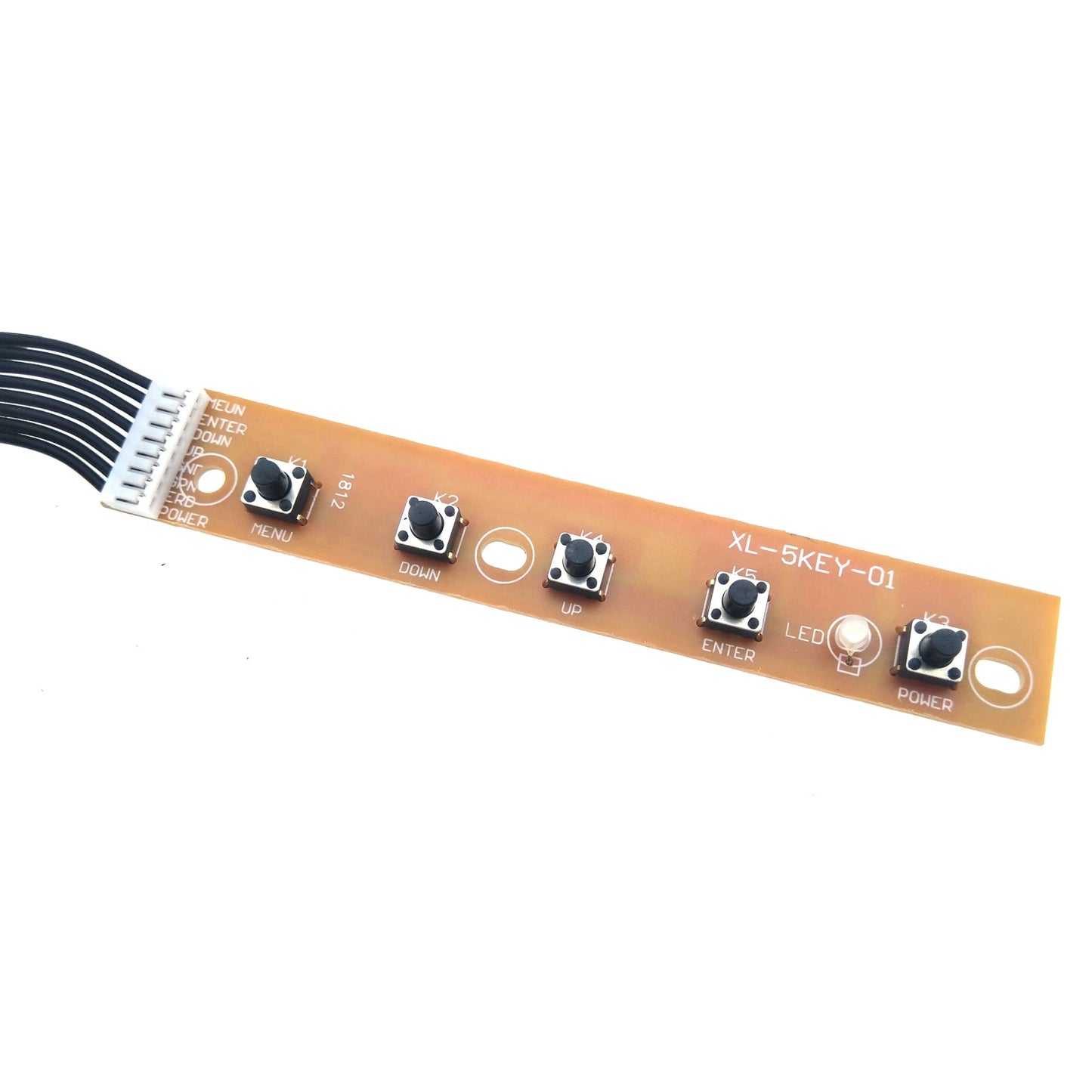

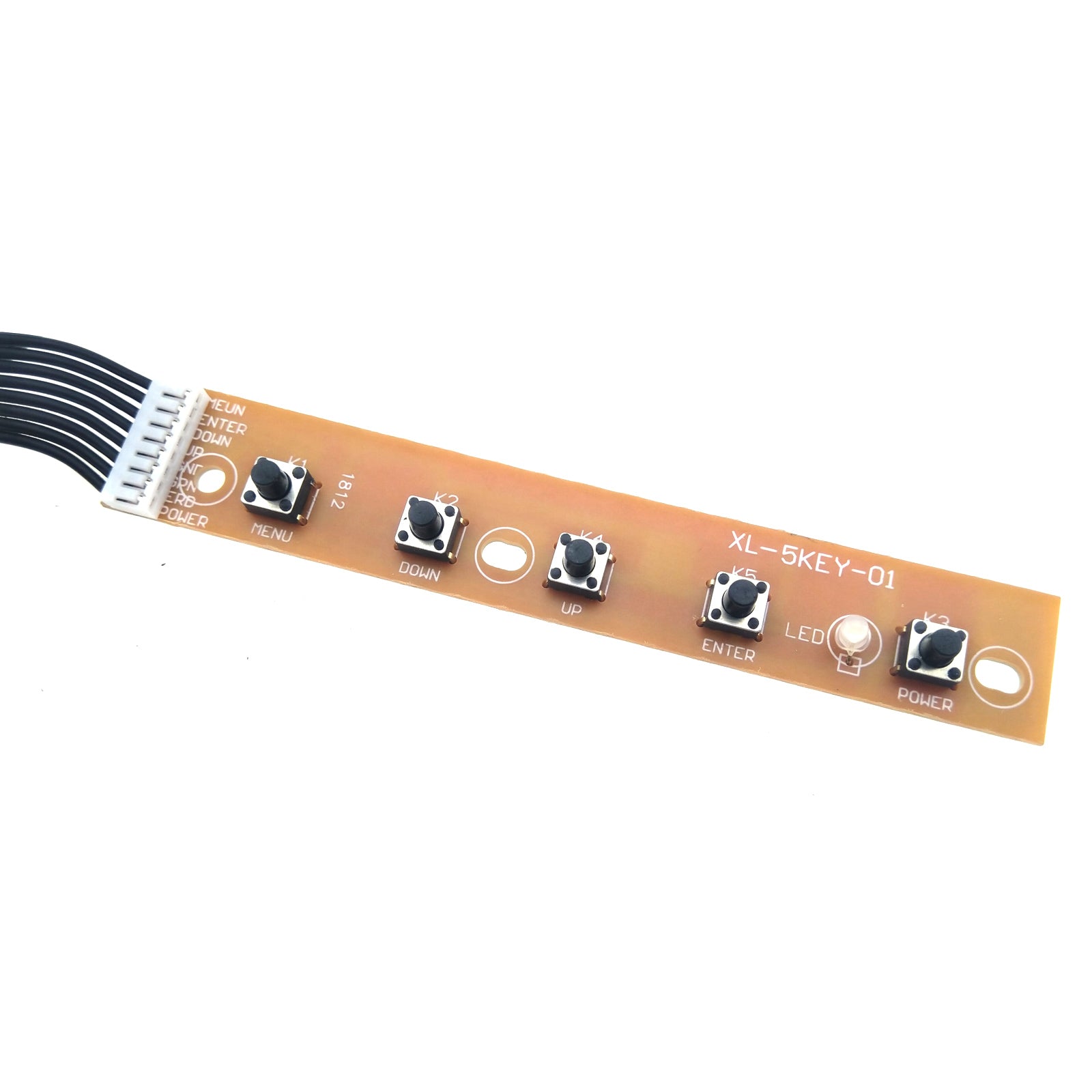

Support control of contrast, brightness, digital volume... etc
