LCD Controller for LM270WQ1-SDA1/ SDA2/ SDB1/ SDC1/ SDC2/ SDDB/ SDD2
LCD Controller for LM270WQ1-SDA1/ SDA2/ SDB1/ SDC1/ SDC2/ SDDB/ SDD2
Regular price
$38.99 USD
Regular price
Sale price
$38.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

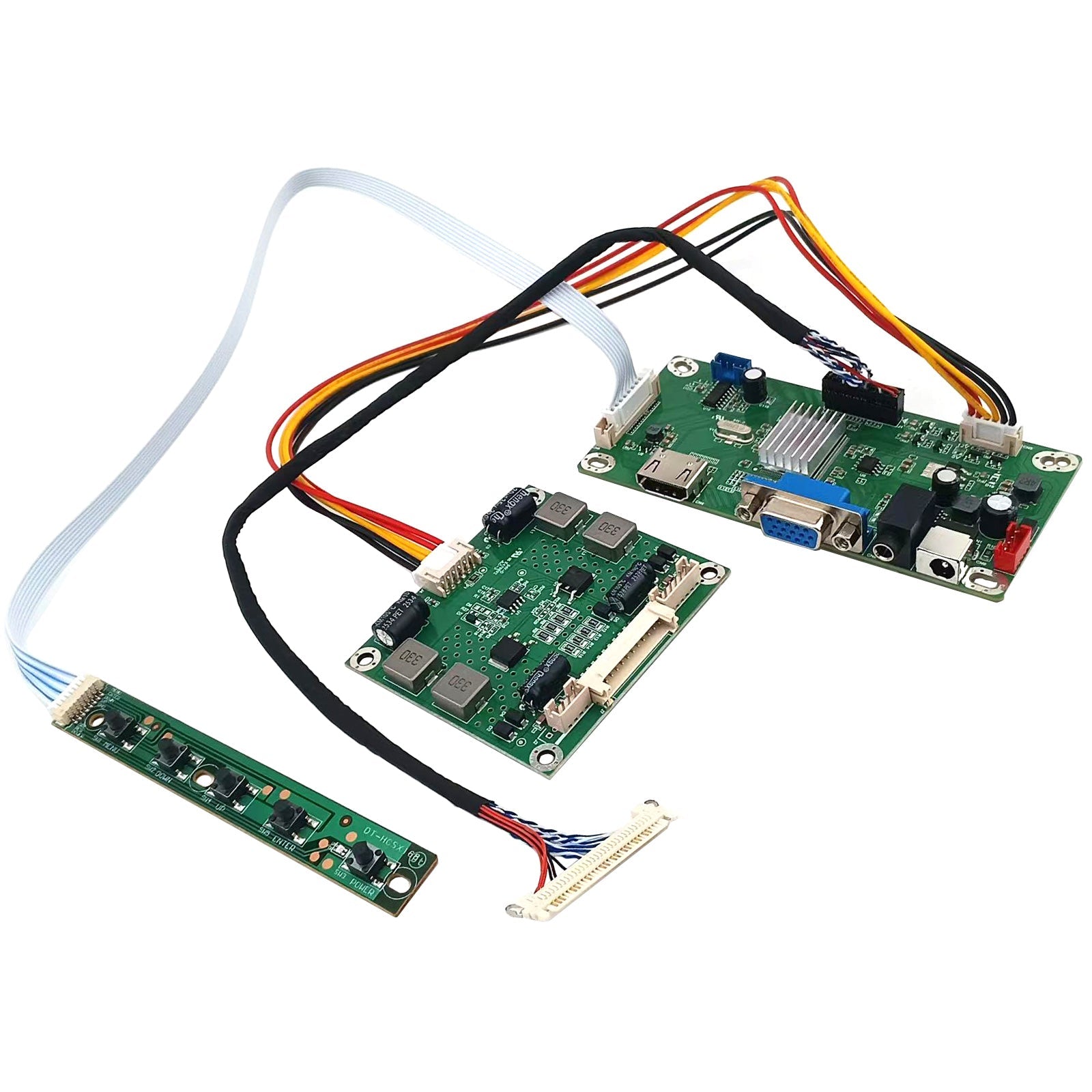

A great set of easy-reassembling LCD controller kit which is used to turn a bare i-mac 27" LCD panel into monitor. You will be a surprised that bare LCD will be in good use, and no longer be wasted.
Support LCD Models:
- LM270WQ1-SDA1
- LM270WQ1-SDA2
- LM270WQ1-SDB1
- LM270WQ1-SDC1
- LM270WQ1-SDC2
- LM270WQ1-SDDB
- LM270WQ1-SDD2
Important Note:
- Power input is 12V 6A which is not included
- Video cable and Power adapter are NOT included
- Supplier may update LCD controller board sometimes, so they may not be same as the picture
Features:
- This board has been widely used with drone, industrial display, medical display... etc
- HDMI resolution 2560 x 1440, VGA resolution 1920 x 1080
- 3.5mm jack audio input, PH2.0 4-pin internal speaker connector
- When it is in standby mode or no HDMI input, there will be no signal
- Board size: 112 x 53mm (4.41 x 2.09 inch)
Packing List:
- 1 x LCD controller kit
