HD-SDI over Fiber Optic Extender Kit (LC, 20KM, RS485)

HD-SDI over Fiber Optic Extender Kit (LC, 20KM, RS485)

£149.99 GBP
£149.99 GBP
Sale Sold out
Shipping calculated at checkout.

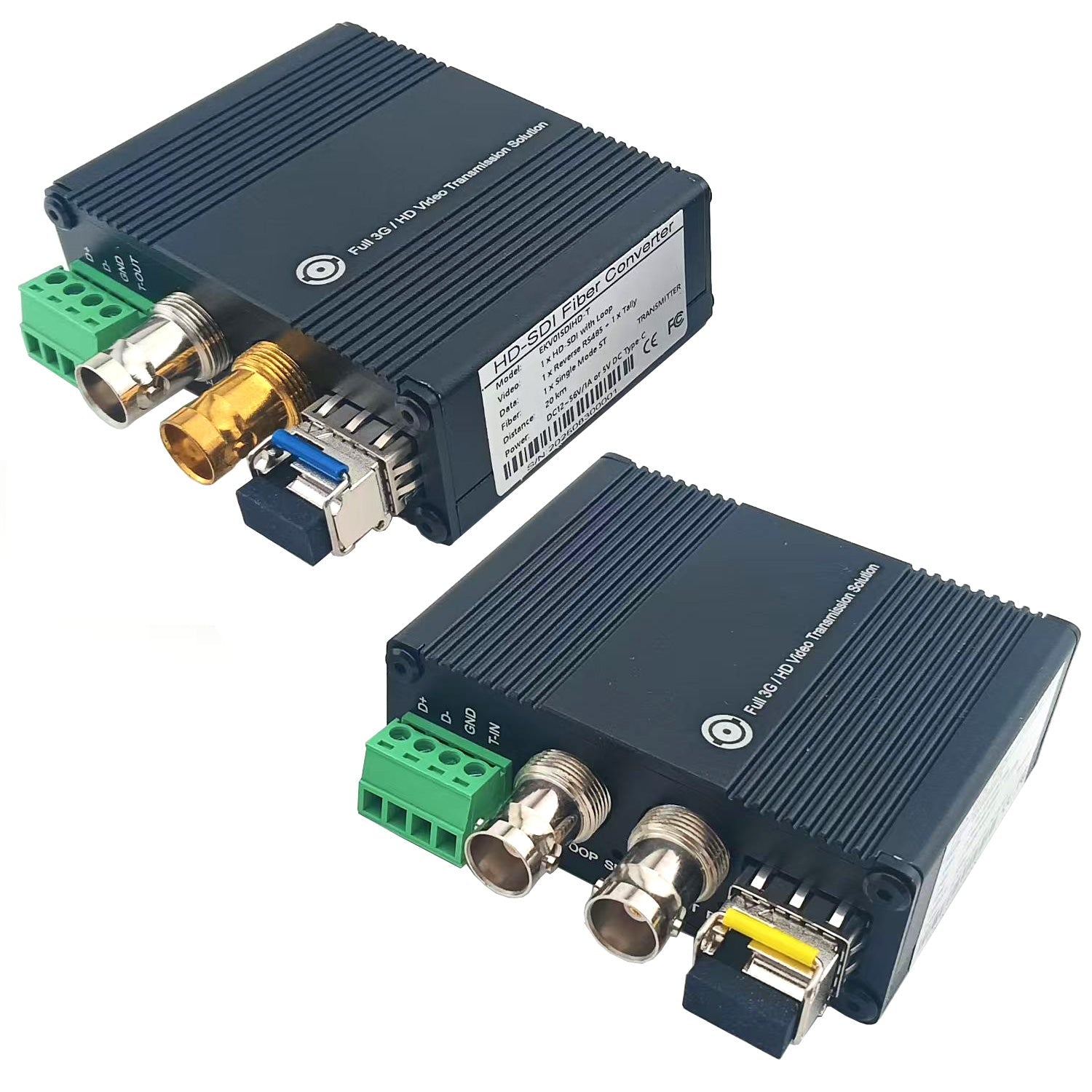

The HD-SDI Fiber Optic Extender transmits uncompressed HD video over single-mode fiber up to 20KM. It supports real-time, zero-latency transmission with RS485 data control and loop output, designed for professional CCTV, broadcast, and industrial applications.

Note:
  • This converter is NOT for any lab testing purpose
  • Please use our provided power adapters

Features:
  • Support HD/ SD SDI, max 1080P30
  • Zero latency, uncompressed video transmission up to 20KM (around 12.4 miles) over LC fiber cable

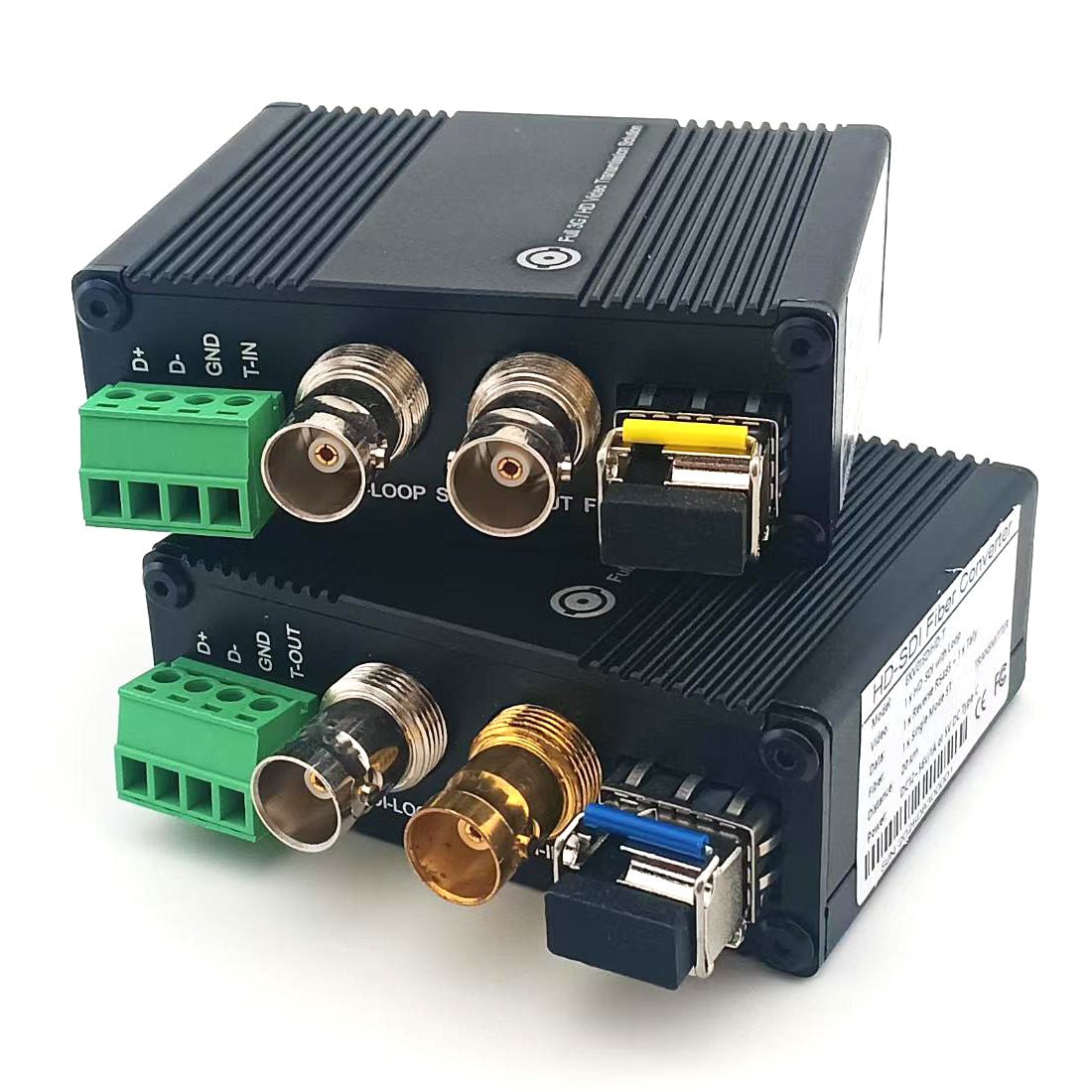

  • HD-SDI loop outputs for local monitoring or cascading

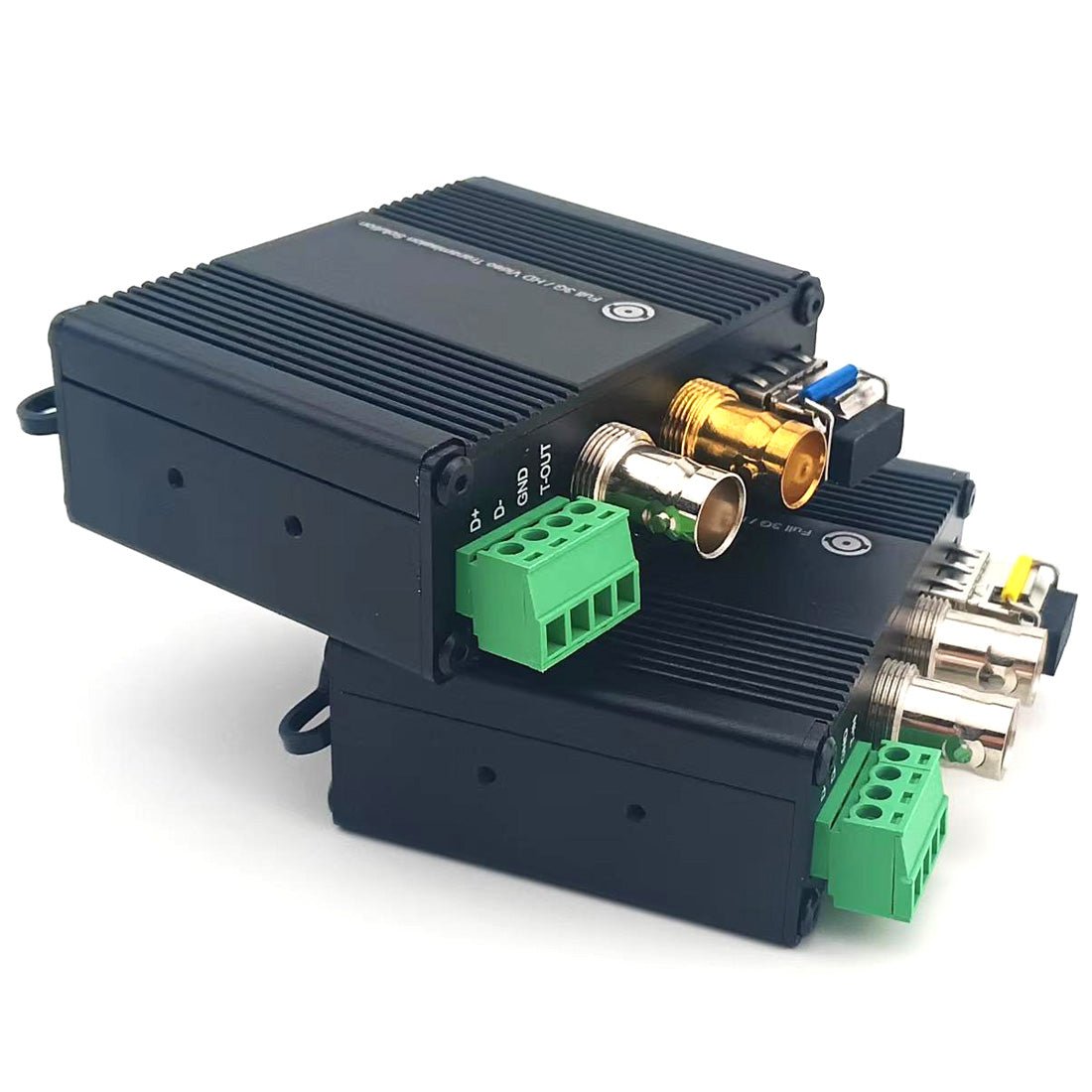

  • RS485 data feed-back (single direction), control PTZ cameras remotely
  • Plug & Play, no setup required
  • Typical Applications like CCTV Surveillance (especially PTZ camera systems), Traffic & City Monitoring, Security Command Centers

Specifications:
Video
SDI signal standard DVB-ASI, DVB-SSI and other Telecom/ Datacom rate (19.4Mb/s to 1.485Gb/s)
SMPTE 424M, SMPTE 292M, 259M
Reflection loss >15DB
Balance >100M@2970Mbps
>200m@1485Mbps
>350m@270Mbps
HD-SDI input 1
HD-SDI output 2
Connector 75Ω BNC
Optical
Number of Fiber 1
Fiber mode Single
Operating wavelength Video 1310nm, Data 1550nm
Reflection loss > 15dB: 1550nm
Jitter < 0.2UI
Connector LC (9/125)
Signal level 800mV nominal
The rise / fall time 200ps nominal
Overshoot < 10% amplitude
Electrical
Operating temperature -10℃ to 55℃

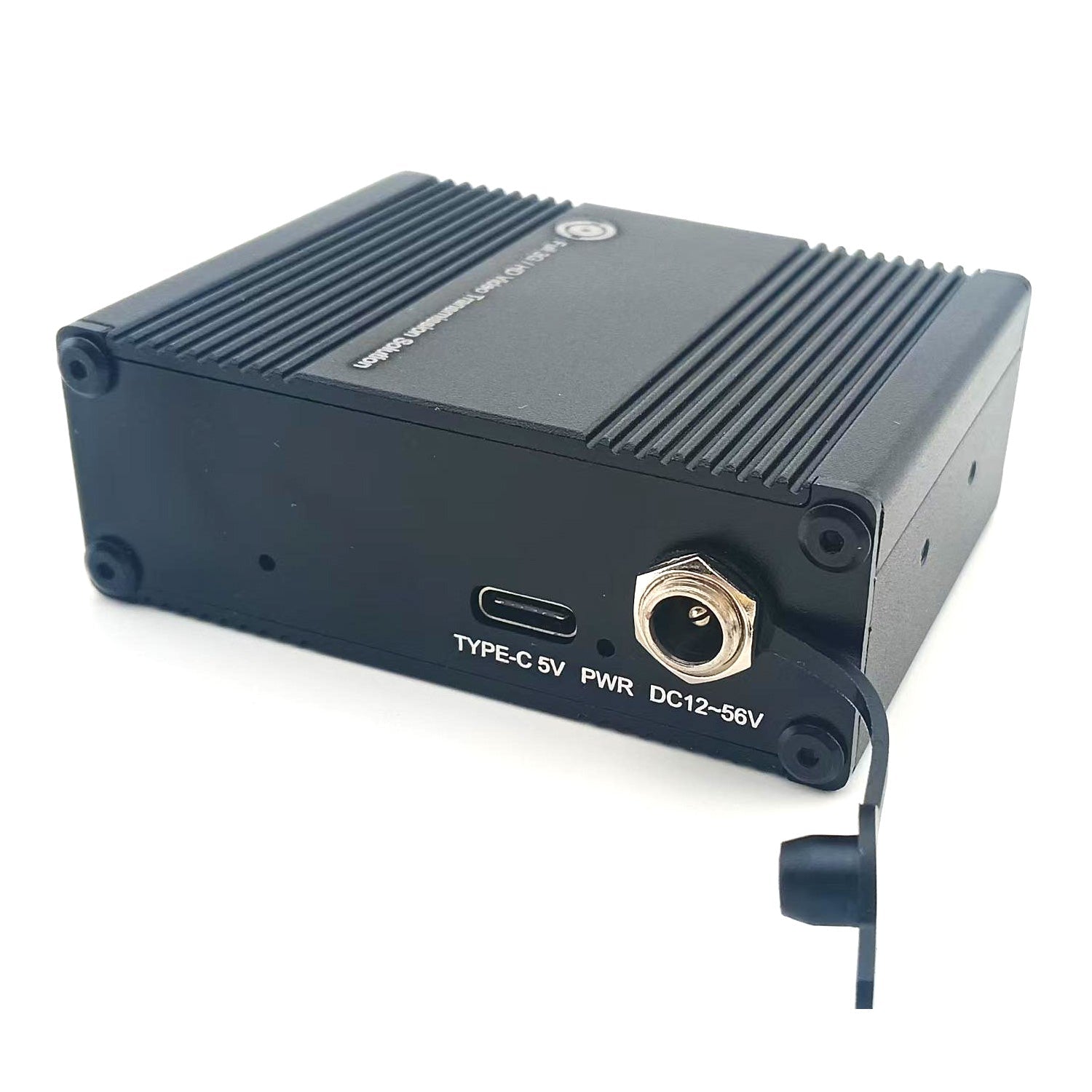

Power supply voltage DC 12V1A or USB 5V1A
Power consumption 2W
EU EMC index EMI/RFI with FCC Par 15 Class A, EU EMC standard
Average time between failures > 100000 hours
Physical
Housing Aluminum alloy
Size 7 x 7 x 2.5cm (2.76 x 2.76 x 0.98 inch)
Weight 143g (0.32 lb)



Packing List:

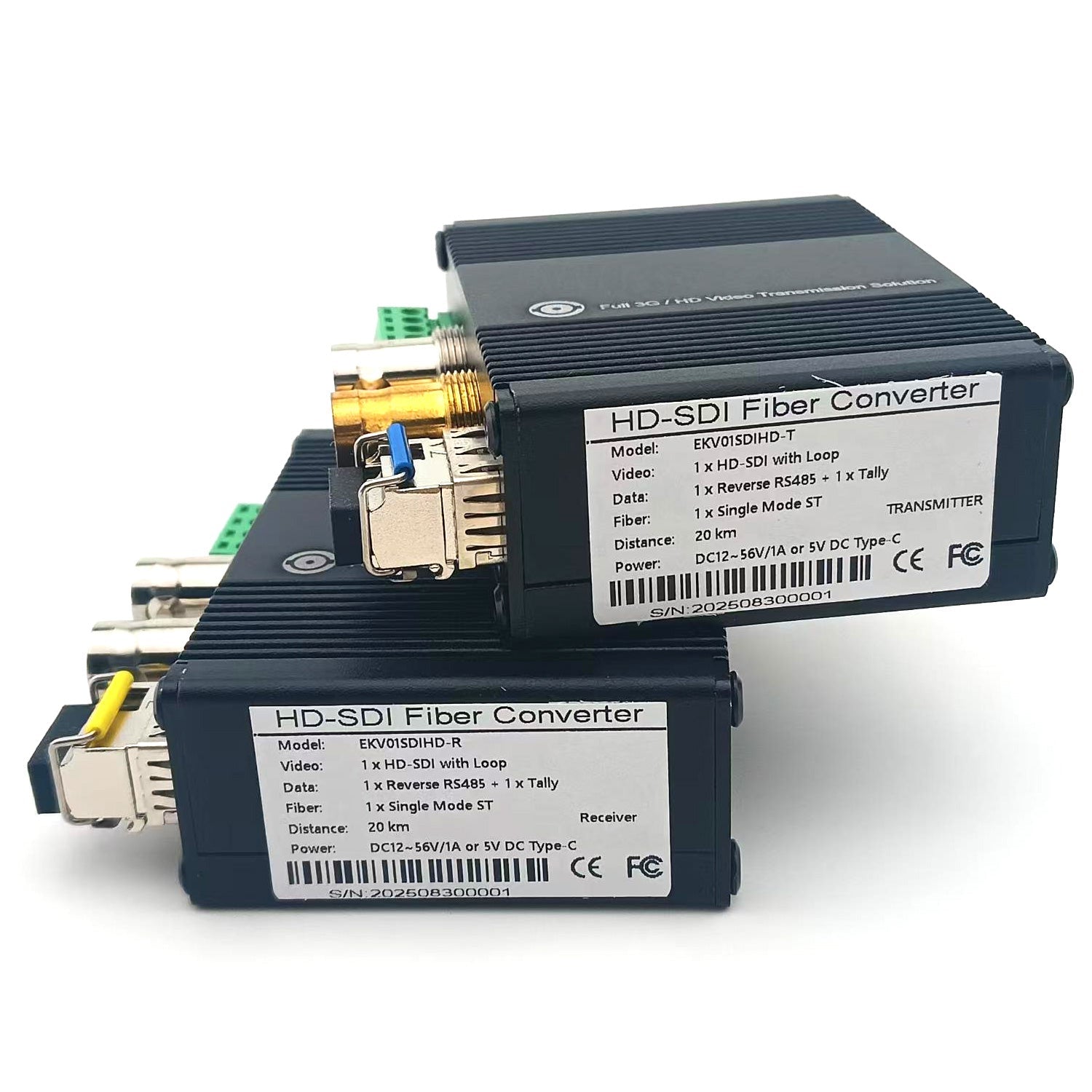

  • 1 x Tansmitter
  • 1 x Receiver
  • 2 x Power adapter
