3G-SDI over Fiber Optic Extender Kit (LC, 10KM, RS485)

3G-SDI over Fiber Optic Extender Kit (LC, 10KM, RS485)

£209.99 GBP
£209.99 GBP
Sale Sold out
Shipping calculated at checkout.
The 3G-SDI Fiber Optic Extender transmits uncompressed HD 1080P60 video over single-mode fiber up to 10KM. It supports real-time, zero-latency transmission with RS485 data control and loop output, designed for professional CCTV, live broadcast, and industrial applications.

Features:
  • Support HD/ SD/ 3G SDI, max 1080P60
  • Zero latency, uncompressed video transmission up to 10KM (around 6.2 miles) over LC fiber cable

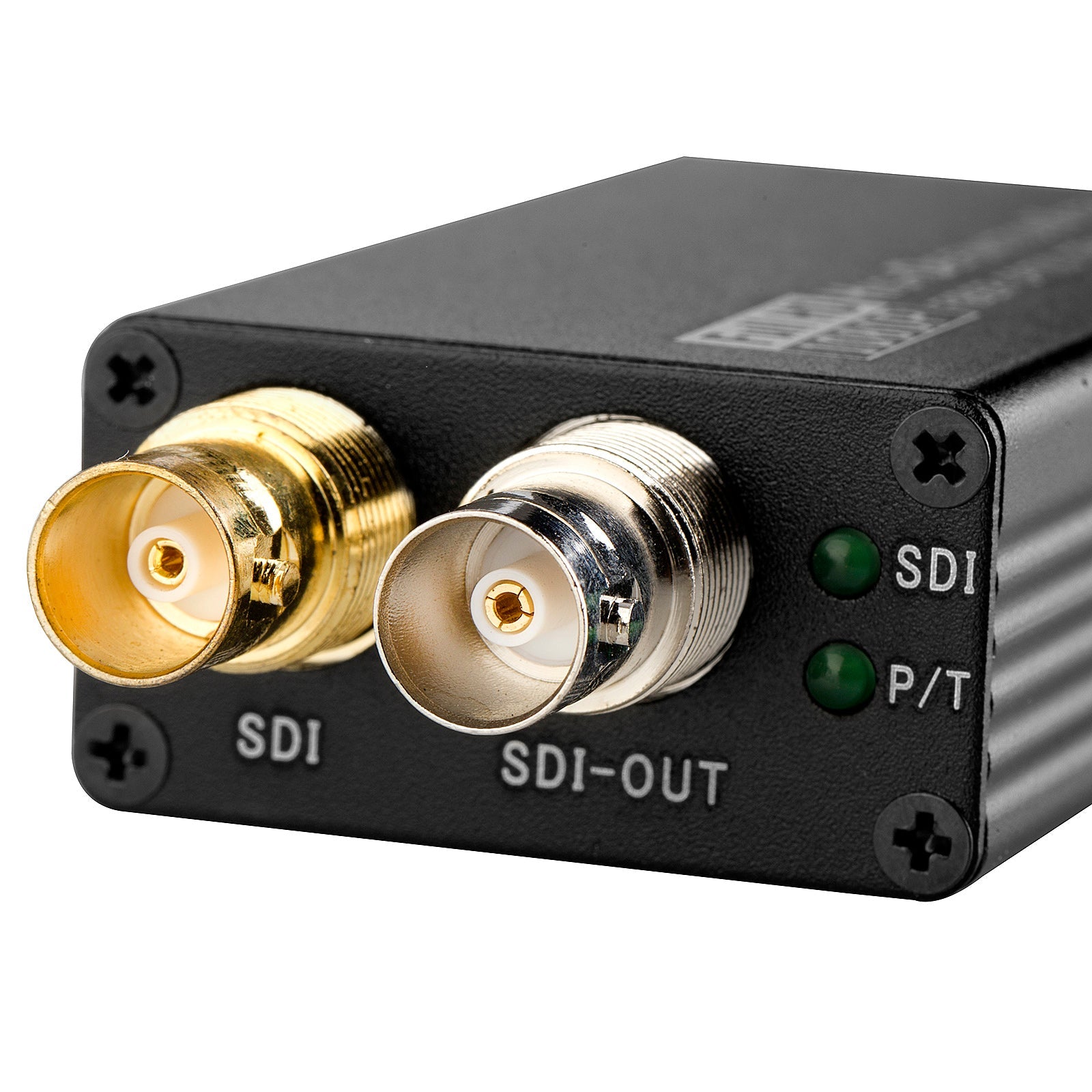

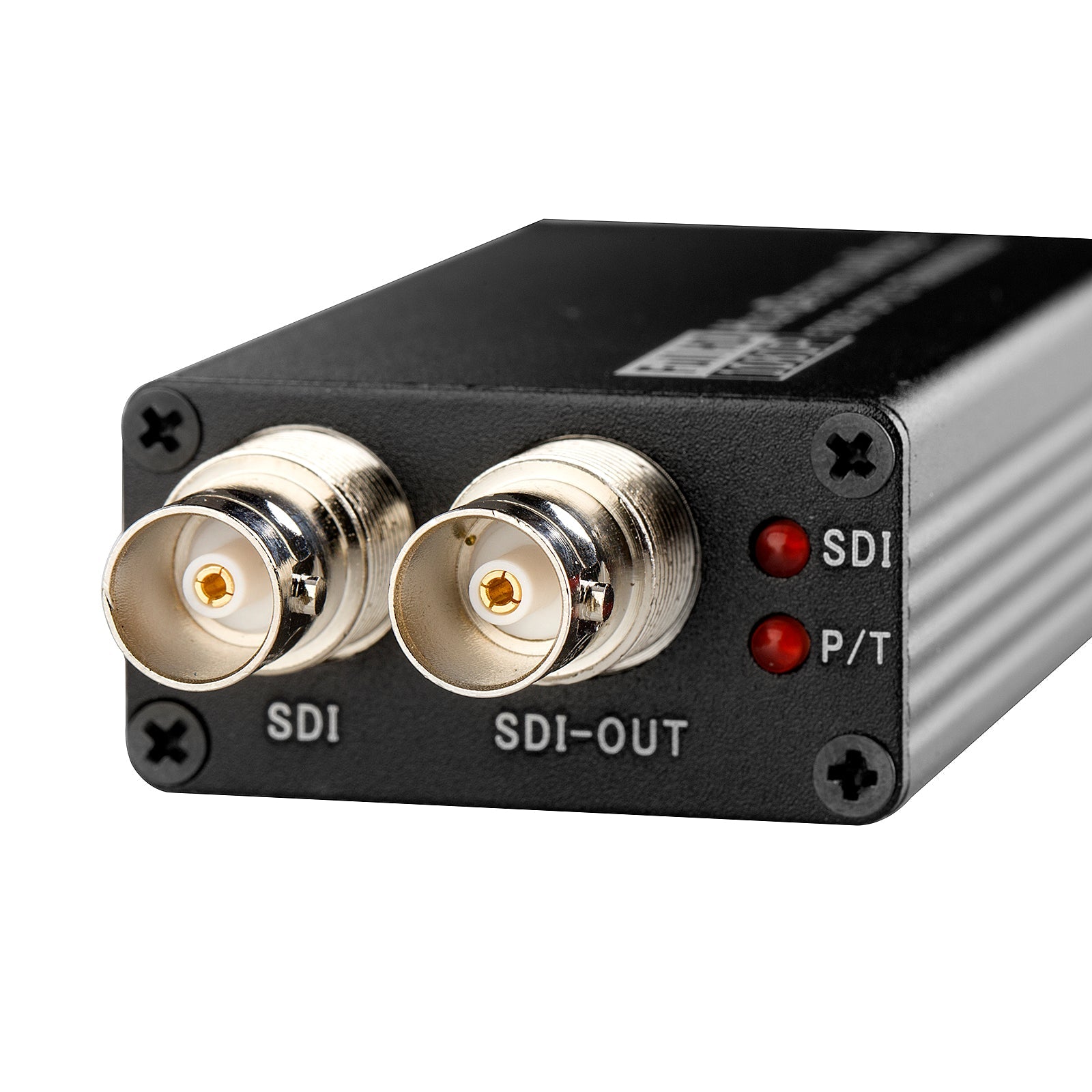

  • 3G-SDI loop outputs for local monitoring or cascading

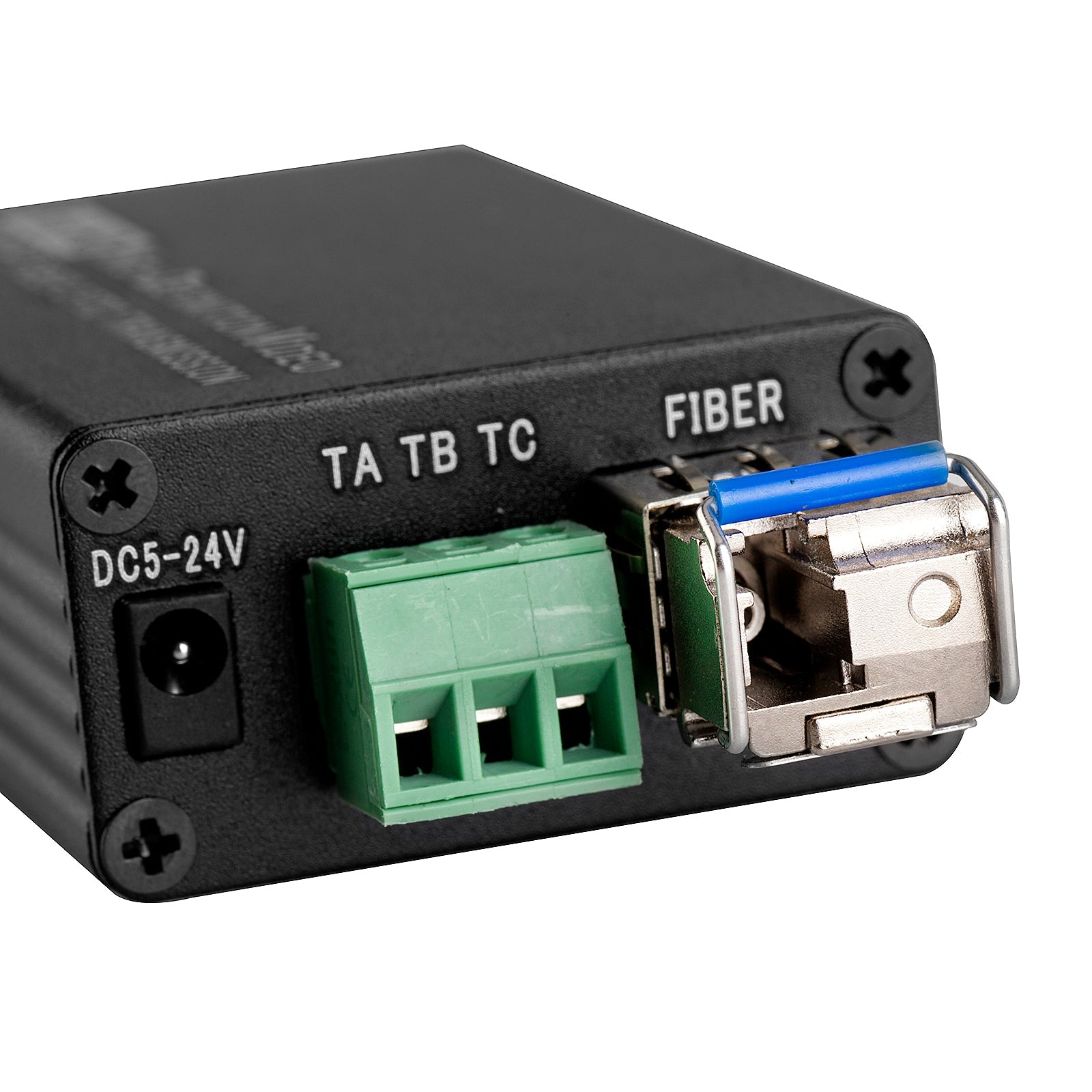

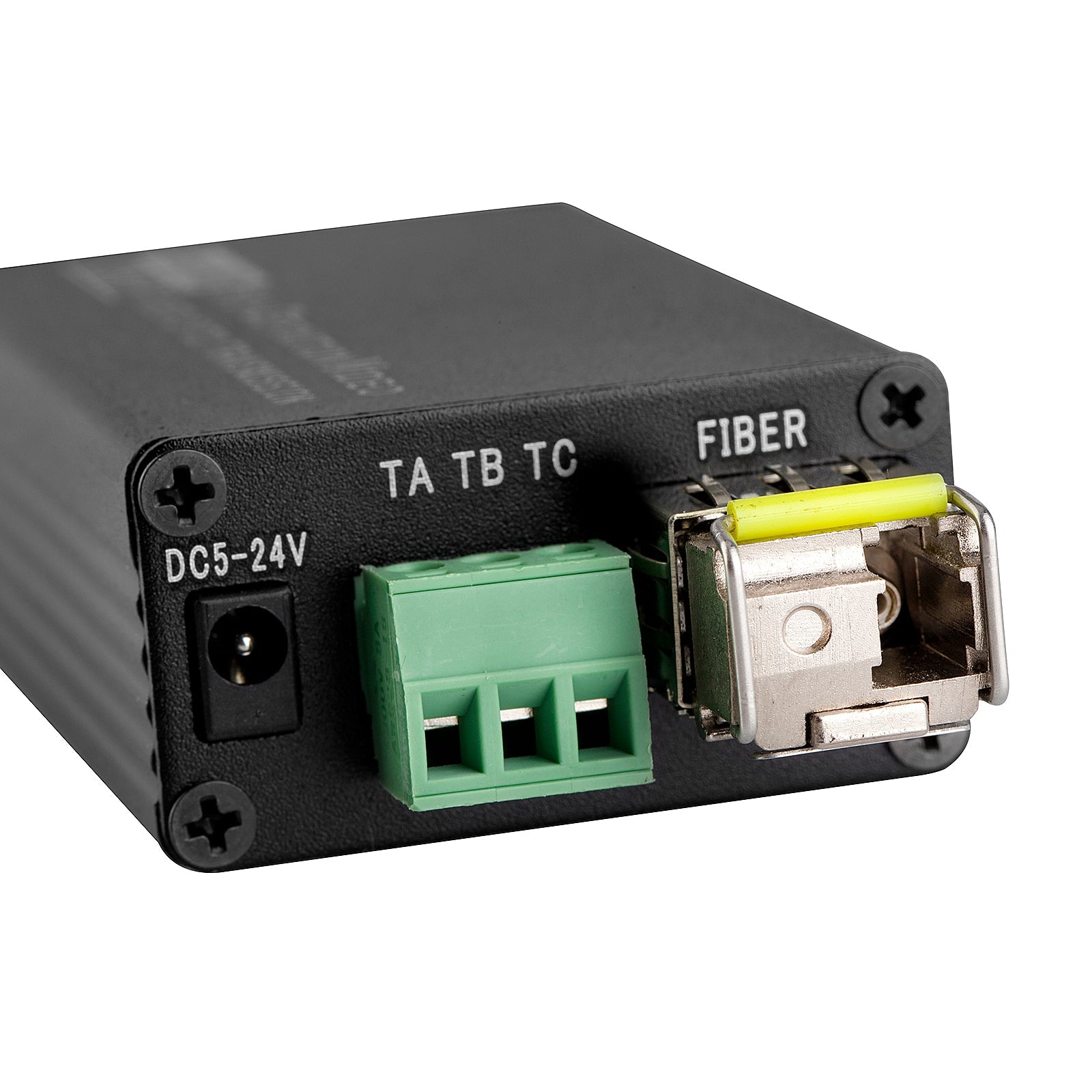

  • RS485 data feed-back (single direction), control PTZ cameras remotely
  • Plug & Play, no setup required
  • Typical Applications like CCTV Surveillance (especially PTZ camera systems), Traffic & City Monitoring, Security Command Centers
Compatibility:
  • Compatible with professional SDI equipment using industry-standard video interface (75Ω BNC SDI) including:
    • Broadcast cameras
    • Video switchers
    • SDI monitors
    • Video converters
    • Production and streaming equipment
  • Suitable for professional video transmission environments includeing:
    • Live event production
    • OB vans
    • Stadium and venue installation
    • Industrial video systems
    • Medical imaging transmission

Specifications:
Video
SDI signal standard DVB-ASI, DVB-SSI and other Telecom/ Datacom rate (19.4Mb/s to 1.485Gb/s)
SMPTE 424M, SMPTE 292M, 259M
Reflection loss >15DB
Balance >100M@2970Mbps
>200m@1485Mbps
>350m@270Mbps
HD-SDI input 1
HD-SDI output 2
Connector 75Ω BNC
Optical
Number of Fiber 1
Fiber mode Single
Operating wavelength Video 1310nm, Data 1550nm
Reflection loss > 15dB: 1550nm
Jitter < 0.2UI
Connector LC (9/125)
Signal level 800mV nominal
The rise / fall time 200ps nominal
Overshoot < 10% amplitude
Electrical
Operating temperature -10℃ to 55℃
Power supply voltage DC 12V1A
Power consumption 2W
EU EMC index EMI/RFI with FCC Par 15 Class A, EU EMC standard
Average time between failures > 100000 hours
Physical
Housing Aluminum alloy
Size 25 x 25 x 120mm (0.98 x 0.98 x 4.72 inch)
Weight 143g (0.32 lb)



Note:
  • This converter is NOT for any lab testing purpose
  • Please use our provided power adapters

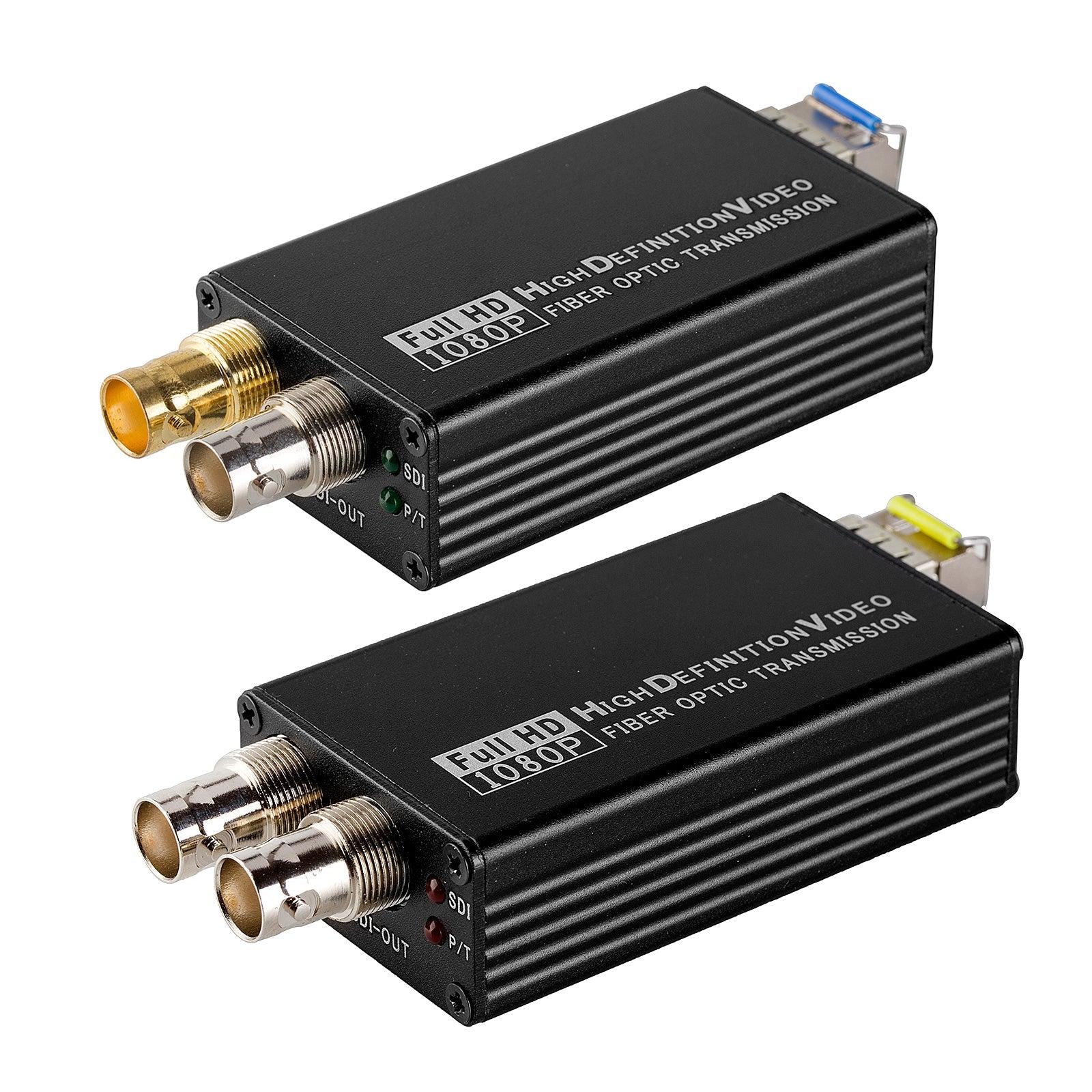

Packing List:
  • 1 x Tansmitter
  • 1 x Receiver
  • 2 x Power adapter
