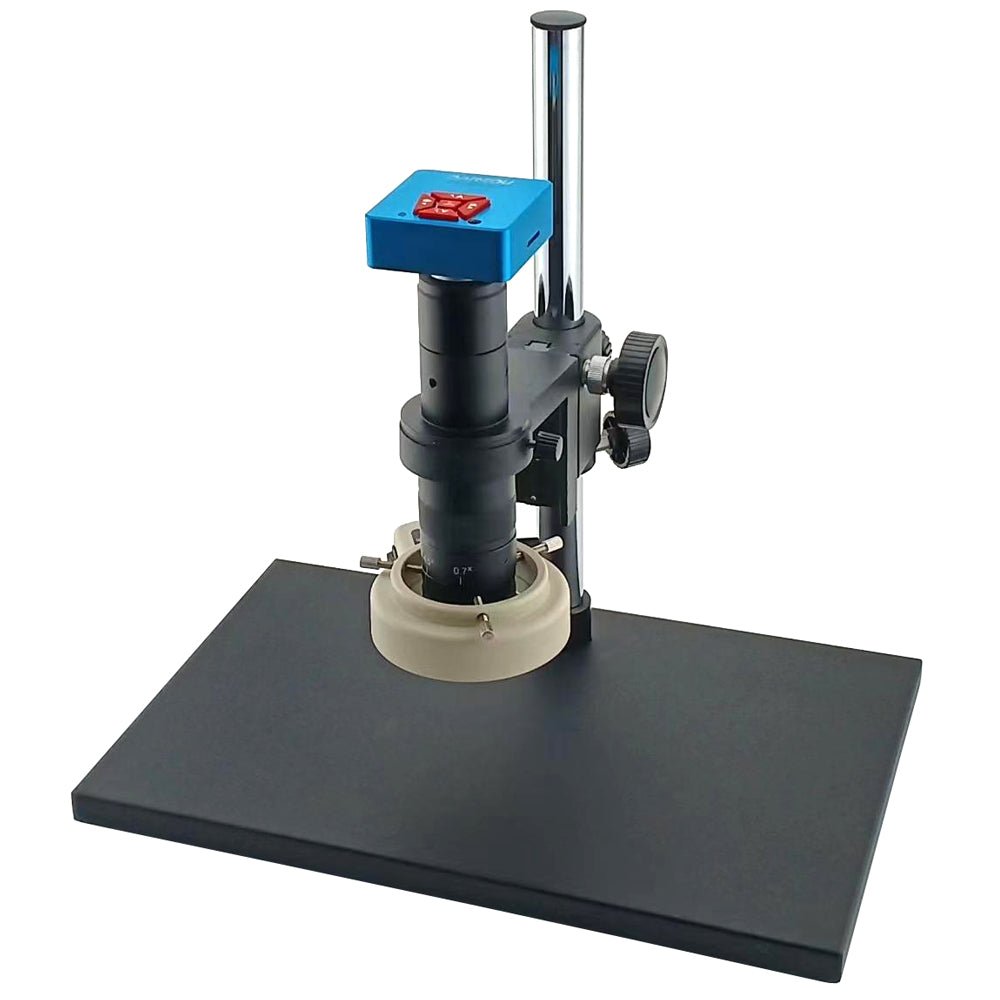

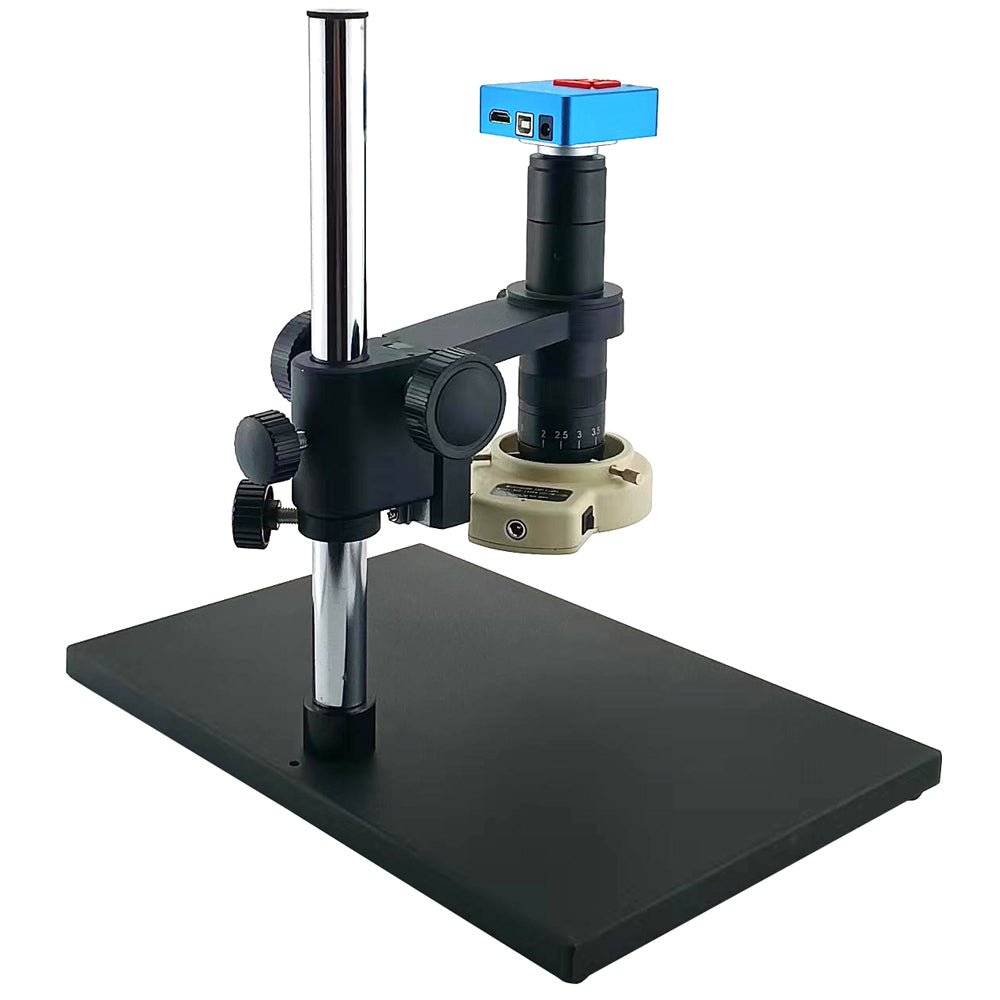

C60 Microscope Camera Stand Kit (Camera, Lens, LED Light, Stand)

C60 Microscope Camera Stand Kit (Camera, Lens, LED Light, Stand)

$339.99 USD
$339.99 USD
Sale Sold out
Shipping calculated at checkout.
This C60 microscope camera set provides fine detail image via 1080P HDMI output. You can put object on the platform and zoom it easily for inspection, and capture 60MP image or record 2K video.

Note:
  • Package does not include memory card
  • Record video and take photo need Micro SD card inserted, which is not included

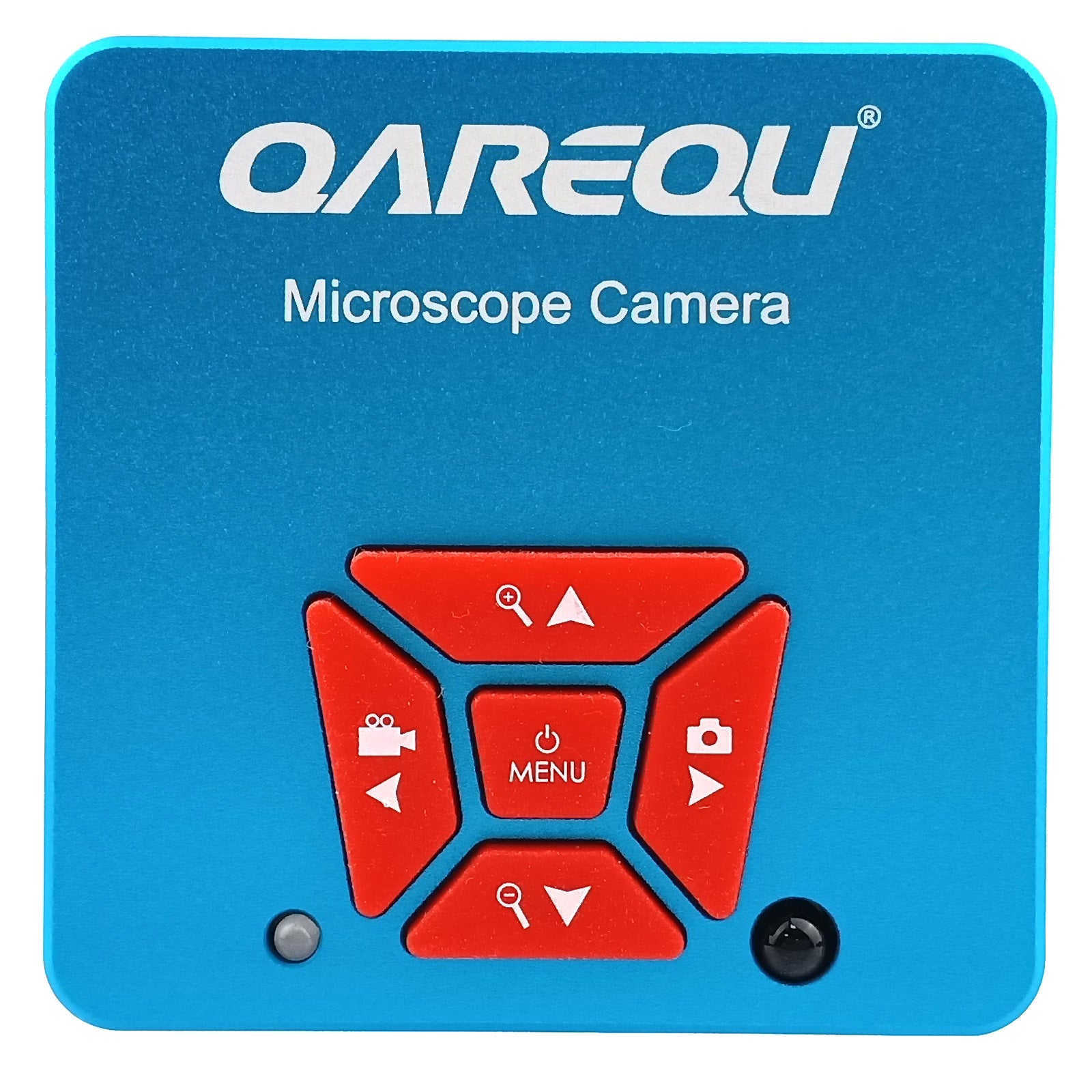

C60 Camera Features:
  • Standalone operation, directly connect to large monitor via HDMI cable
  • 5 buttons on camera for menu setup, photo taking, video recording, digital zoom (max 7x)
  • Aluminum body, keep low temperature after long working hours
  • Model: C60
  • Sensor Type: CMOS
  • Sensor Optical Format: 1/2.33"
  • Video Output Resolution (HDMI): 1920 x 1080
  • Video Capture Resolution: 2K 30fps, 1080P 60fps
  • Video Capture Format: MP4
  • Photo Capture Resolution: Max 60MP (4:3), 40MP (16:9)
  • Photo Capture Format: JPG
  • Storage Media: Micro SD card (max 64GB)
  • Connectivity: HDMI, USB
  • Lens-mount: C-mount
  • Power: DC 12V 1A
  • Size: 64 x 64 x 35mm (2.5 x 2.5 x 1.4 inch)
  • Weight: 150g (0.33 lb)

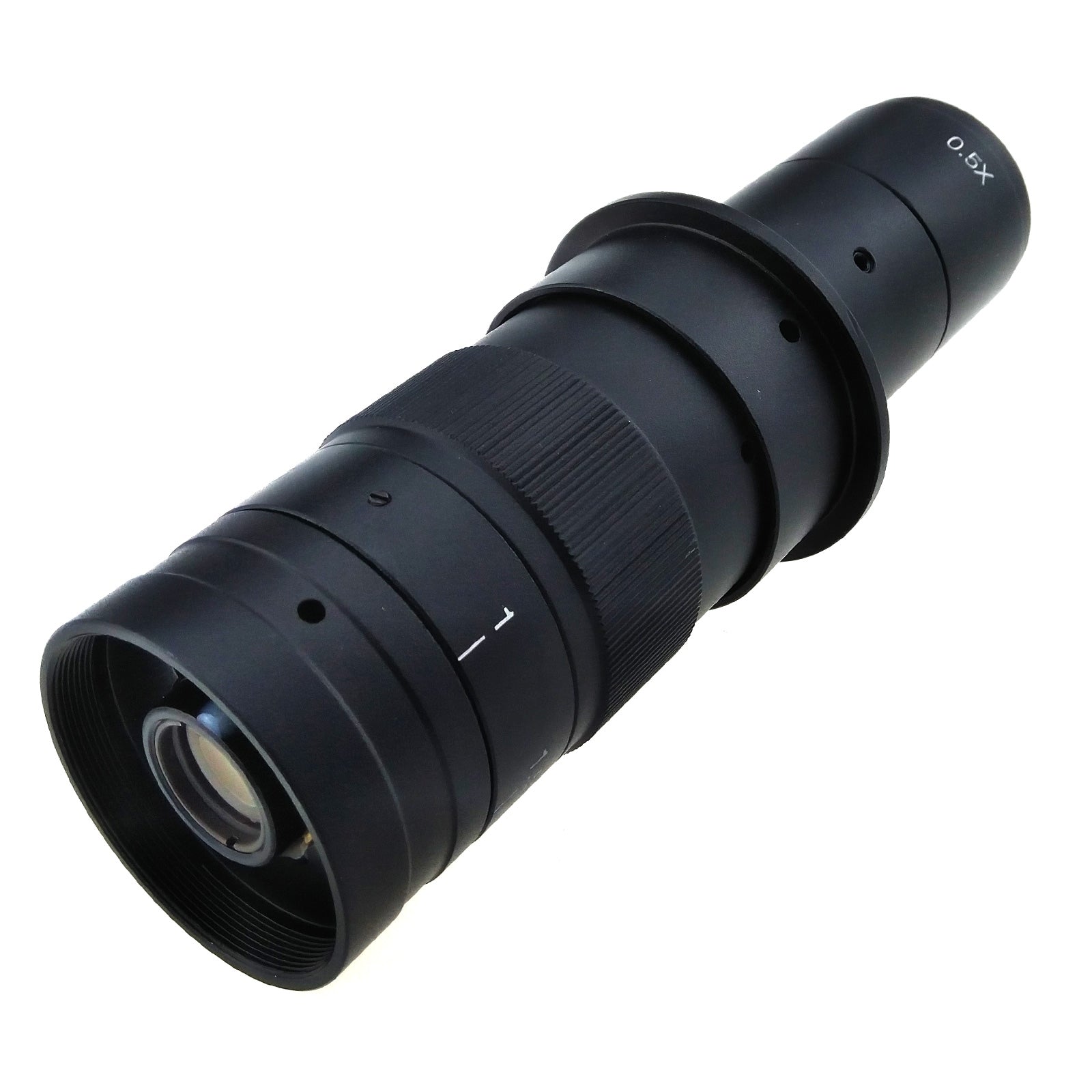

Lens Features:
  • 0.5X adapter, 0.7X - 4.5X range (about 10 - 180X magnification)
  • Working distance from 90mm to 200mm, Visual field is 2.3mm to 22mm
  • Mount: C-mount
  • Adapter: 0.5X C-mount
  • Magnification: 0.7X - 4.5X
  • Zoom Ratios: 1:6.4
  • Working Distance: 90mm - 200mm
  • Perspective: 2.3mm - 22mm
  • Size (L x Dia): 168 x 50mm (6.61 x 1.97 inch)
  • Weight: 505g (1.11 lb)

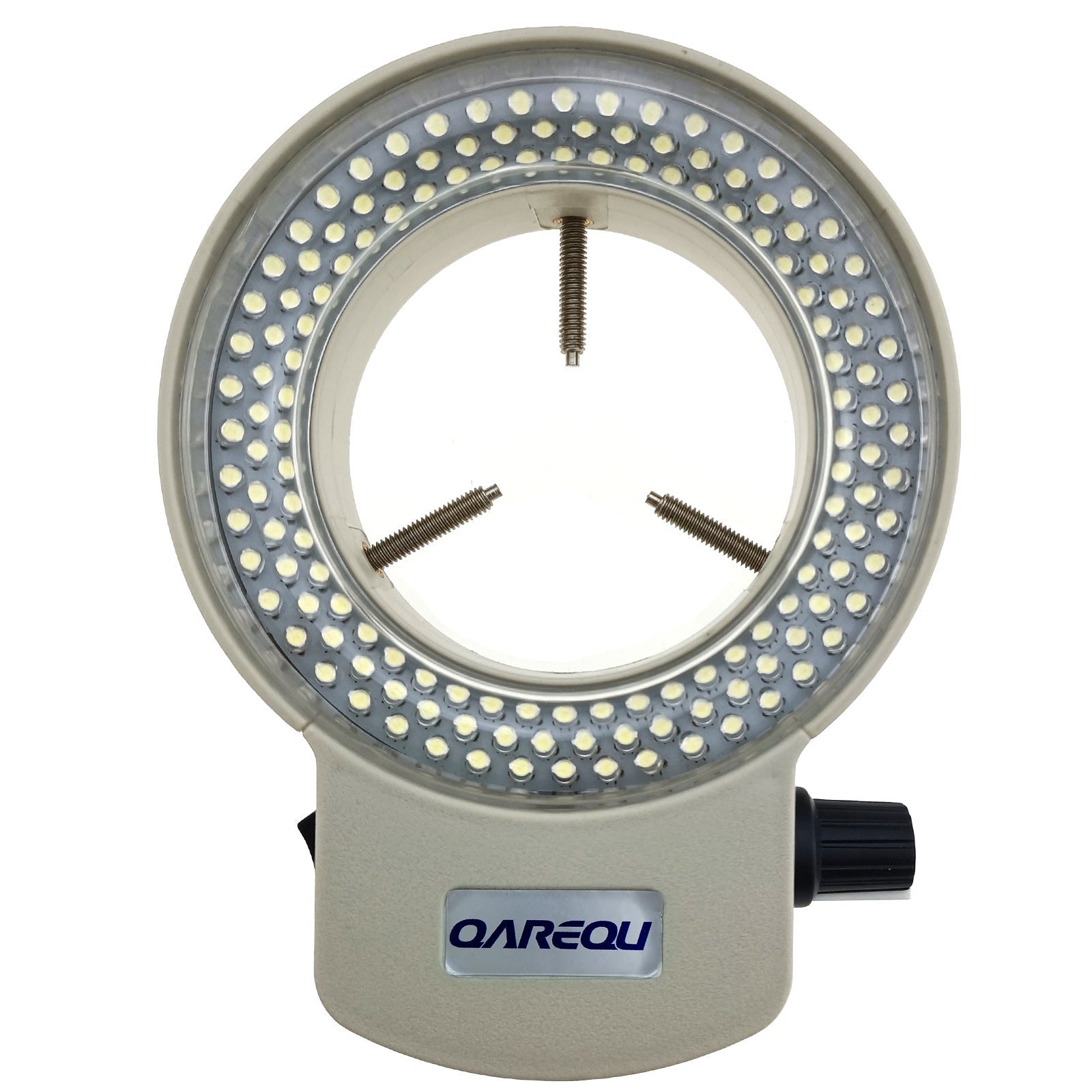

Ring Light Features:
  • Model number: DPD-144HW
  • Number of LED: 144pcs
  • Light color: 6500K white light
  • LED life time: > 100000 hours
  • Brightness adjust: 0-100%
  • Power: 8W
  • Power input: DC 12V
  • Mounting size: 2.48" (63mm)
  • Inner diameter: 2.36" (60mm)
  • Overall diameter: 3.68" (93.5mm)
  • Weight: 86.8g (0.19 lb)

Stand Features:
  • Hold lens with max 50mm diameter
  • Up and down slight moving, for easy focus
  • Position fixed knob avoid sudden slide down
  • Steel axis, metal platform
  • Axis length: 34cm
  • Lens mount diameter: 5cm
  • Base platform: 38 x 25 x 30cm (14.96 x 9.84 x 1.18 inch)
  • Weight: 4kg (8.82 lb)

Packing List (box pack):
  • 1 x Camera
  • 1 x Zoom lens
  • 1 x Ring light
  • 1 x Stand
  • 1 x HDMI cable
  • 1 x USB cable
  • 2 x Power adapter
