LCD Backlight Inverter 4 Lamp Tube CCFL
LCD Backlight Inverter 4 Lamp Tube CCFL
通常価格
$11.99 USD
通常価格
セール価格
$11.99 USD
単価
/
あたり
Features:

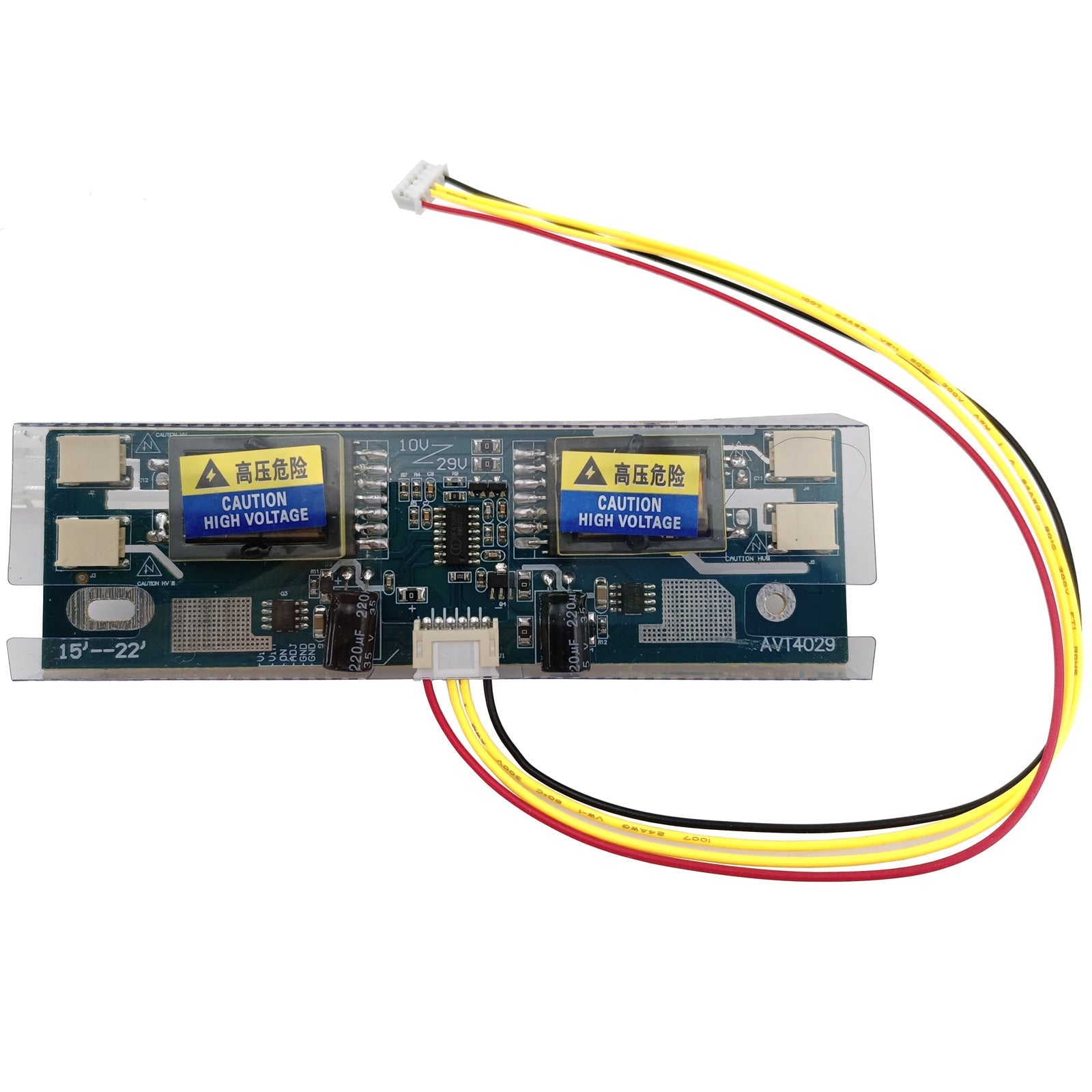

- DC-AC Inverter for 4 CCFL lamps of 14-22 inch LCD back lighting system
- Low consumption
- Wide Dimming Range
- Lamp Current Balance Control
- Input current overload protected
- Plug and play no modification required
- Size: 13.5 x 4cm (5.31 x 1.57 inch)

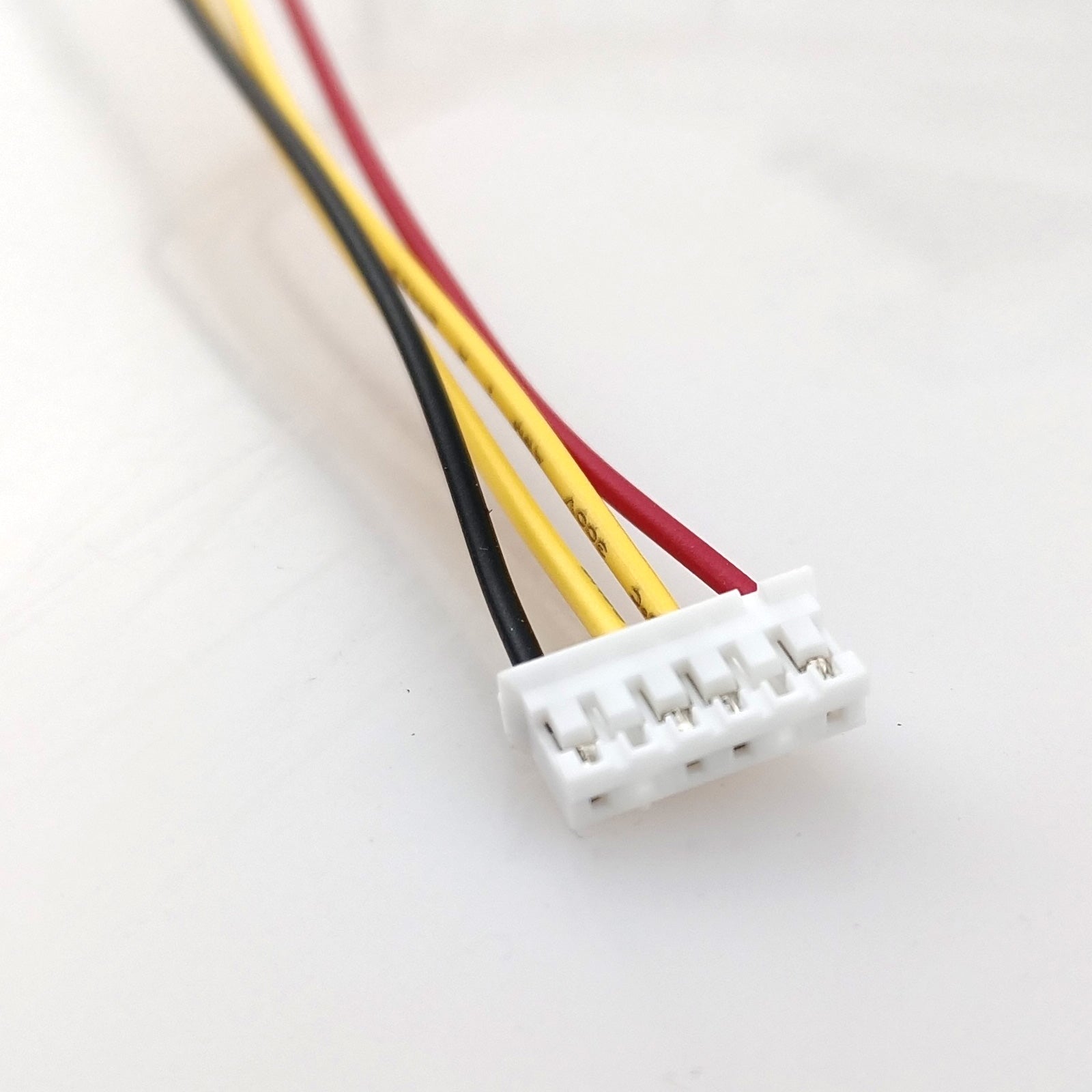

- Cable length: 28cm (11 inch)
Input Connectors:
- Pin 1/ 2: Supply voltage 10-29V
- Pin 3: On/ Off
- Pin 4: Brightness adjust
- Pin 5/ 6: Ground
Output Connectors:
- Pin 1: H-V High voltage
- Pin 2: L-V Low voltage
Packing List:
- 1 x Inverter
- 1 x Cable
