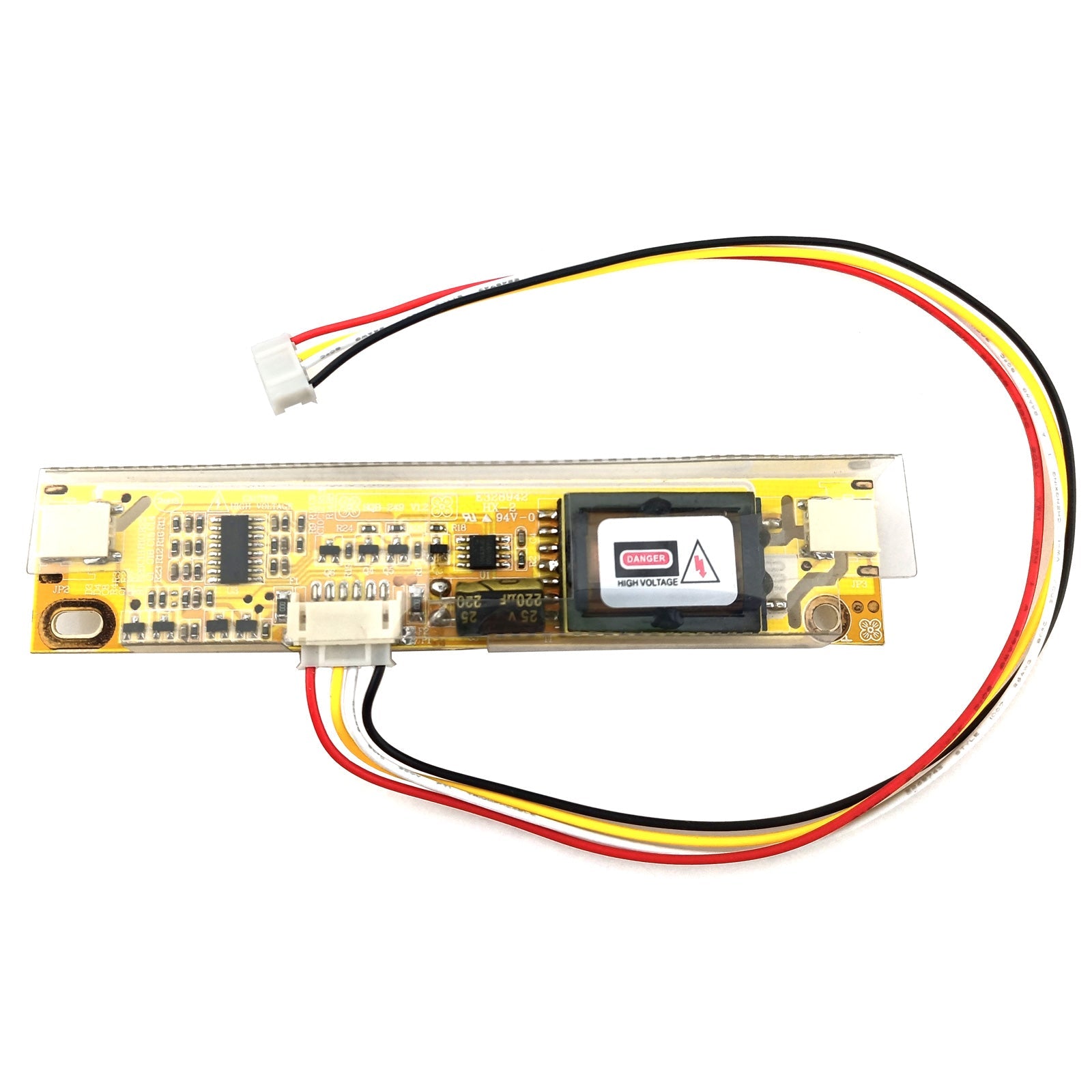

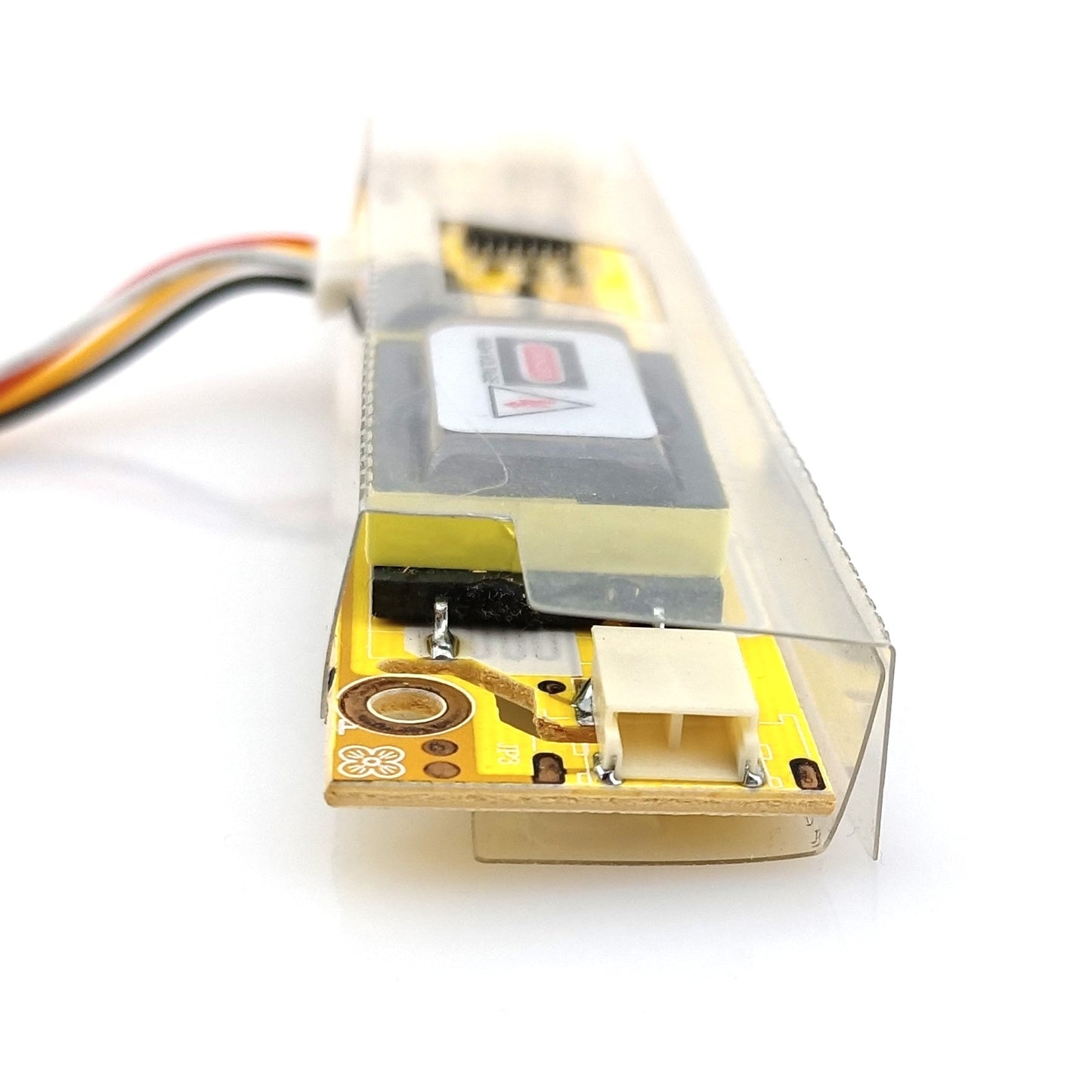

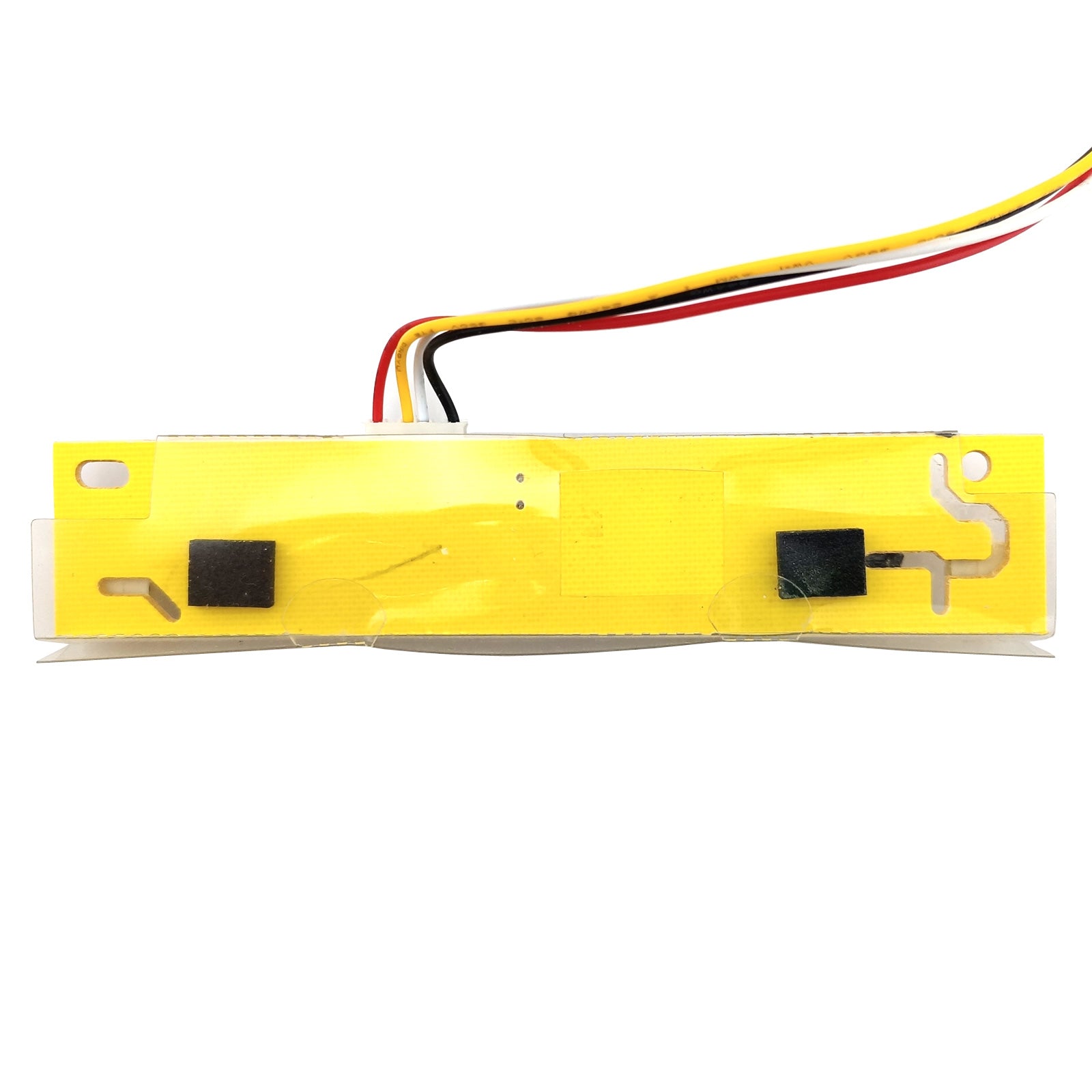

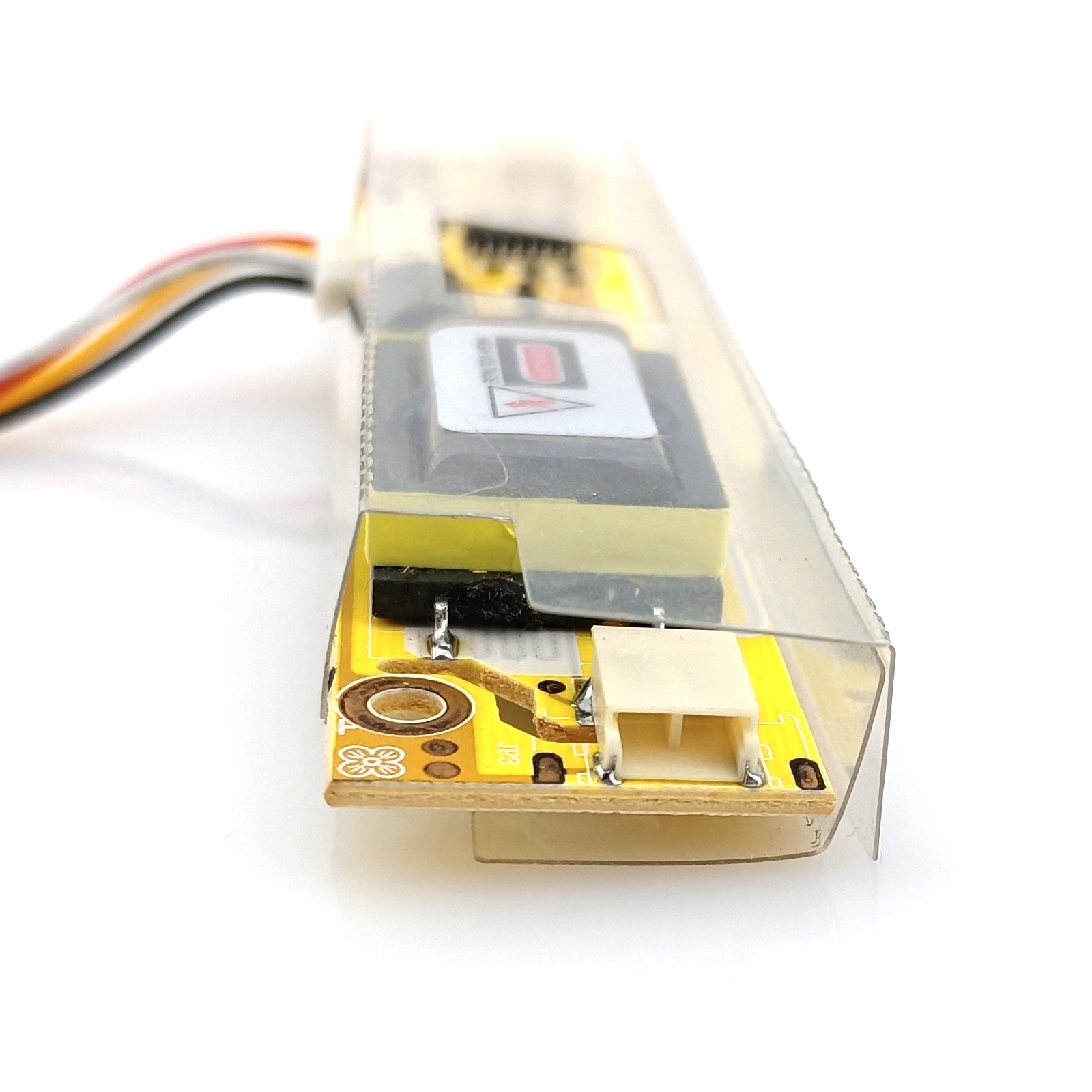

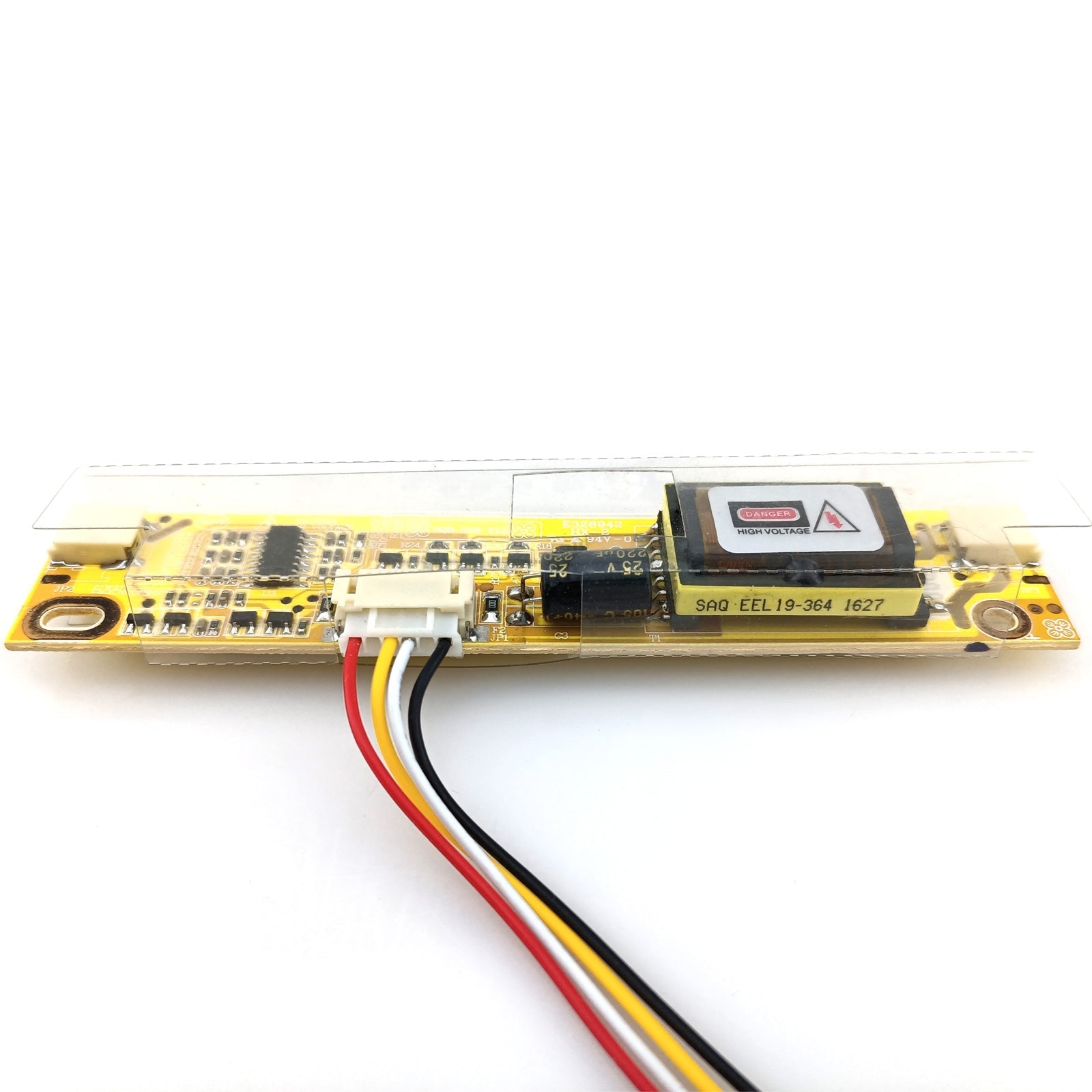

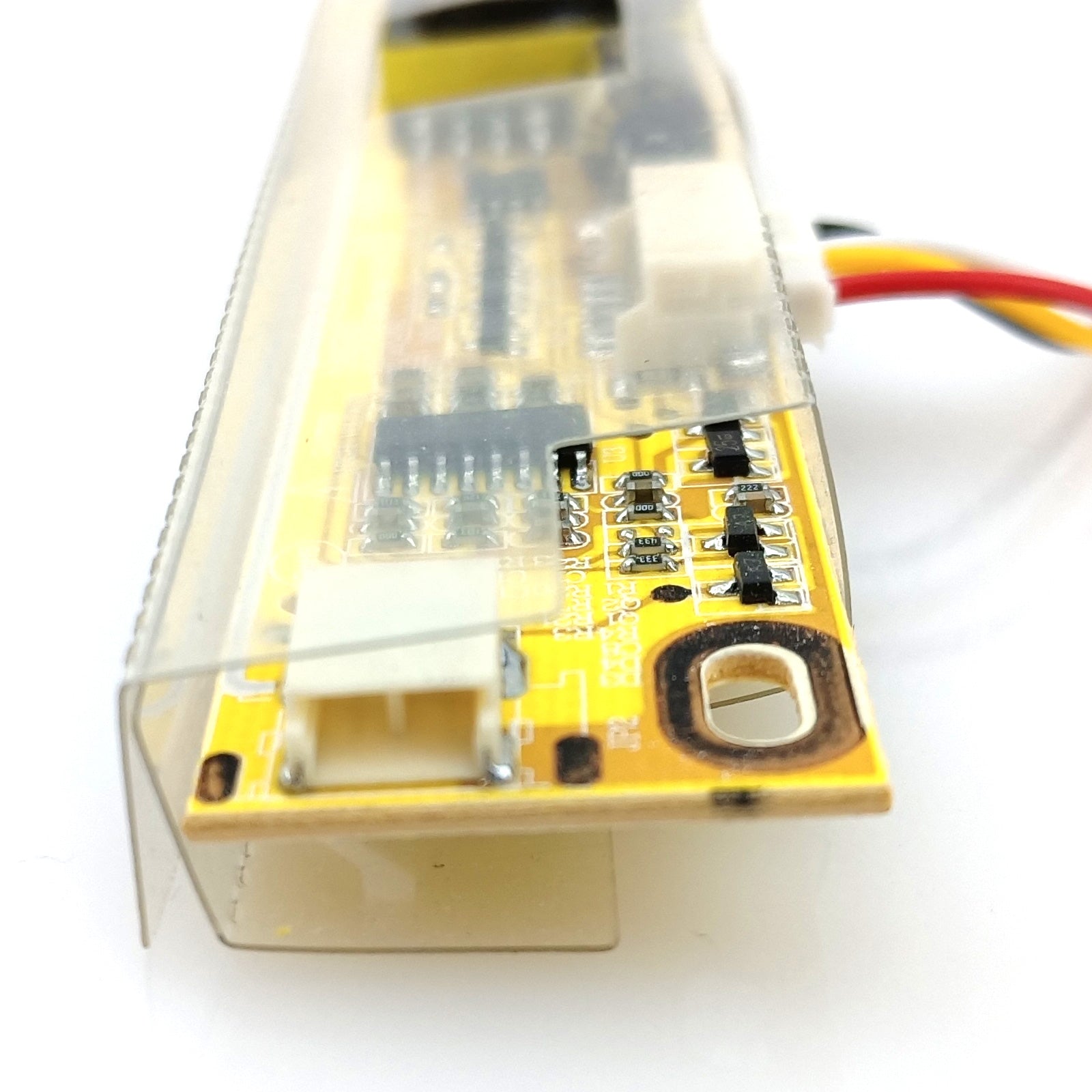

LCD Backlight Inverter 2 Lamp Tube CCFL

Note:

• PCB color is random

Features:

• DC-AC Inverter for 2 CCFL lamps of 10-22 inch LCD back lighting system

• Low consumption

• Wide Dimming Range

• Lamp Current Balance Control

• Input current overload protected

• Plug and play no modification required

• Size: 12 x 2.5cm (4.72 x 0.98 inch)
• Cable length: 28cm (11 inch)

Input Connectors:

• Pin 1/ 2: Supply voltage 12V

• Pin 3: On/ Off

• Pin 4: Brightness adjust

• Pin 5/ 6: Ground


Output Connectors:

• Pin 1: H-V High voltage

• Pin 2: L-V Low voltage

Packing List:

• 1 x Inverter
• 1 x Cable
