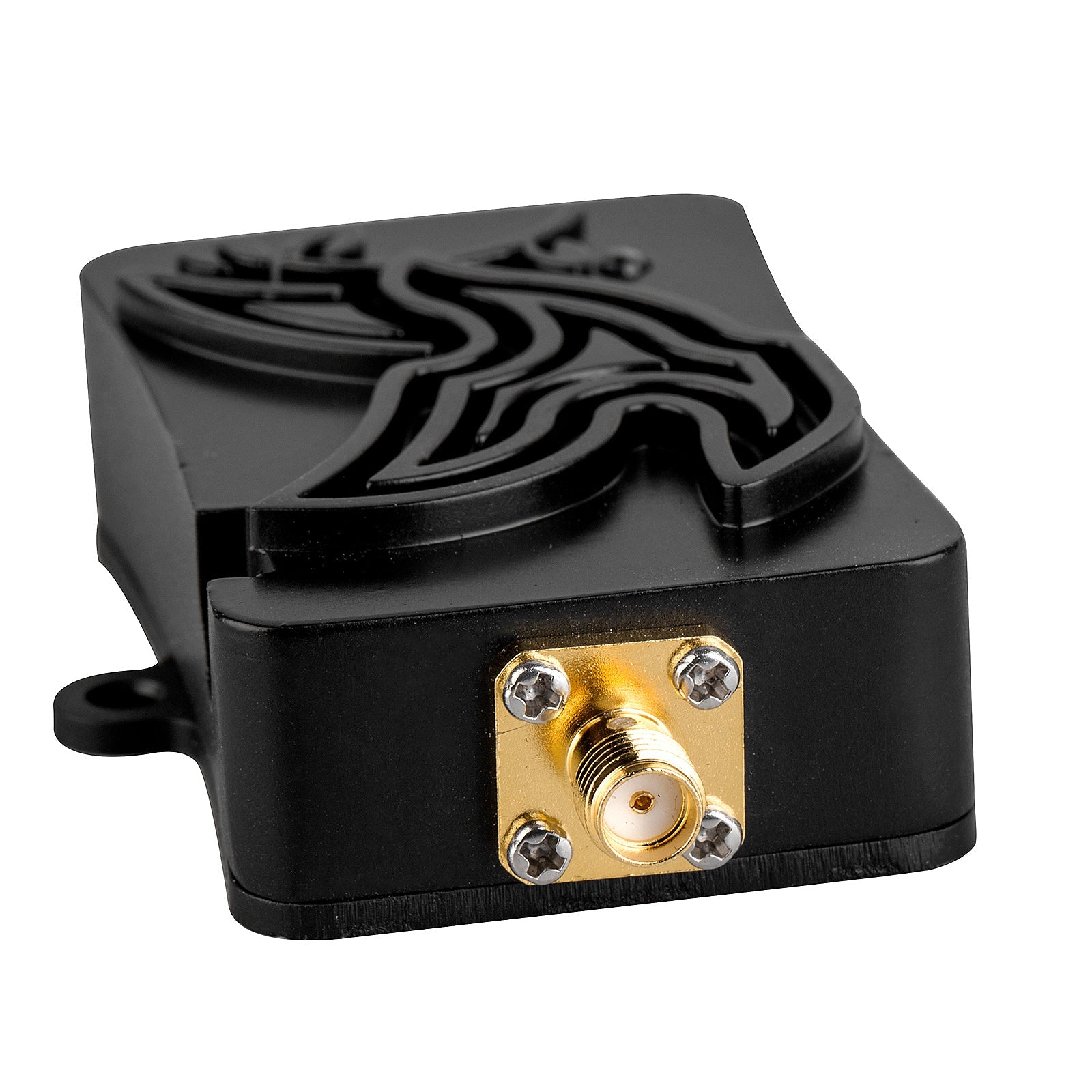

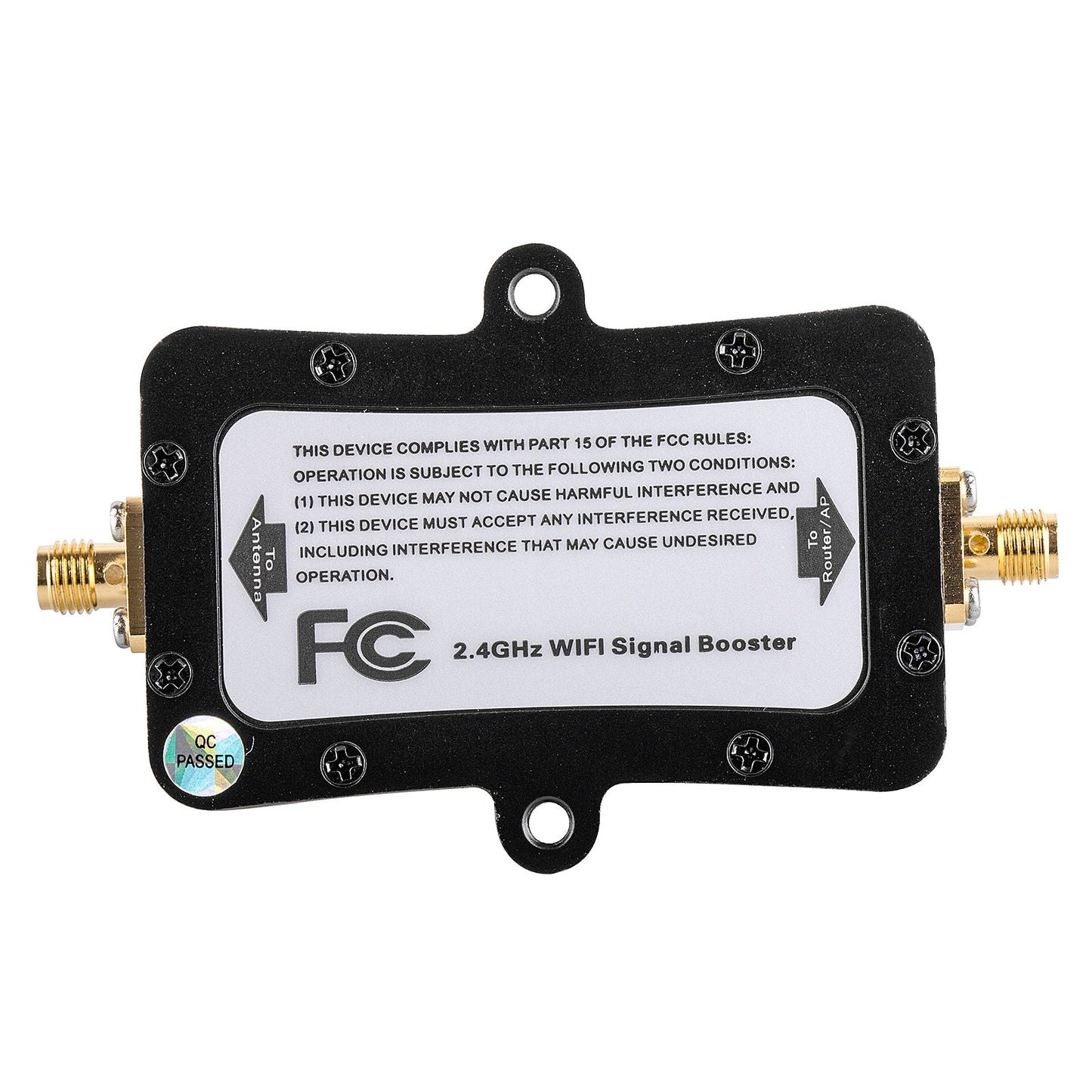

4W WiFi wireless broadband amplifier is ideal for increase the 2400-2500 MHz frequency devices. And its wireless signal may even penetrate complex environments with many walls and obstacles.
Note:

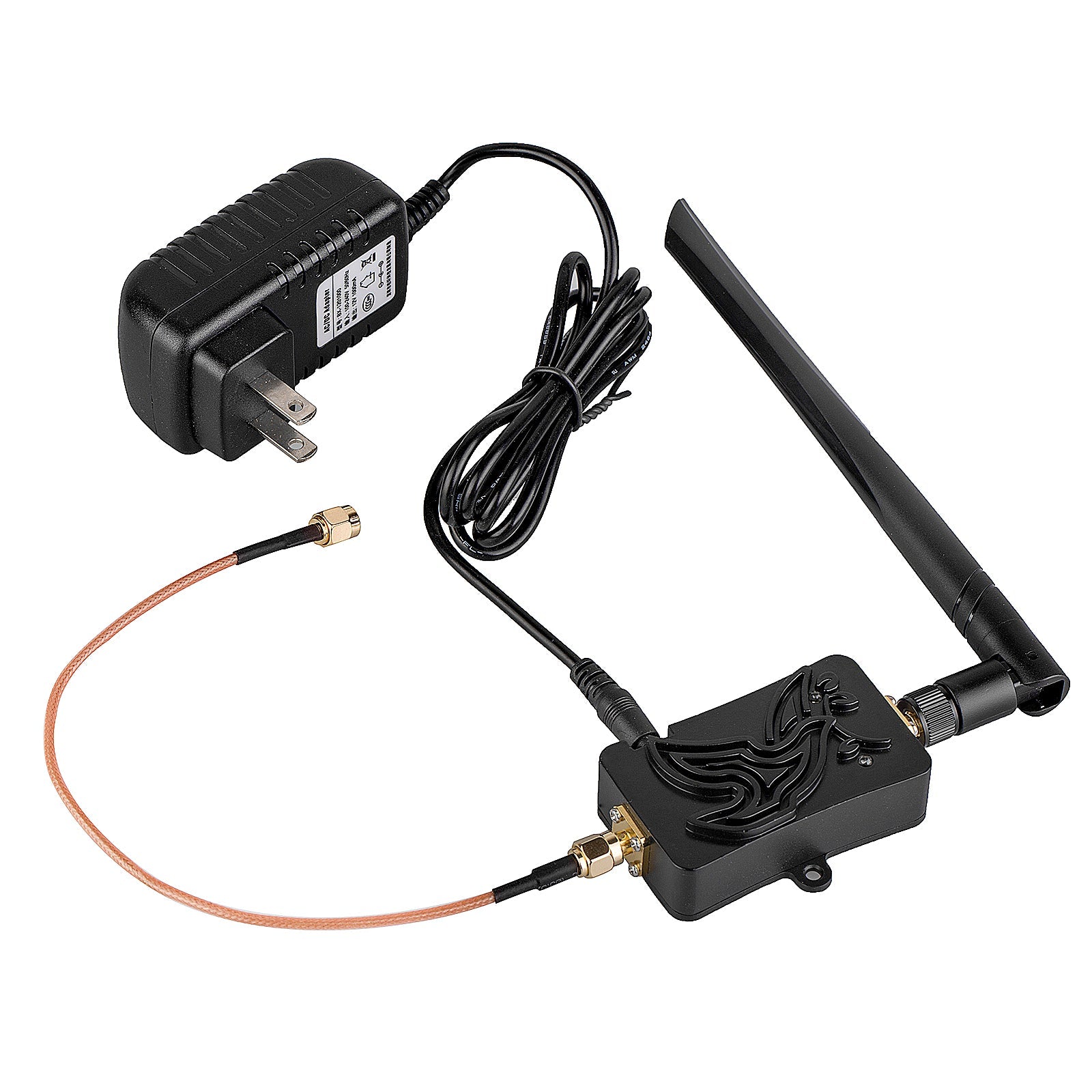

The item need connect with router or access point
Not for 5.8GHz
Features:
4W booster increases the effective range and coverage area of your WiFi network
Works with bi-directional, half-duplex, auto-switching via carrier sensing
Maximum output power of 4000mW by the booster
Signal activity LED indicates, low noise receive gain
Plug and play, easy installation, no driver needed
Specifications:
Standard: IEEE 802.11b/g/n (2.4Ghz mode only)
Working pattern: TDD
Frequency range: 2.4 to 2.5Ghz
Operating voltage: 6 to 16V
Receiving gain: 10dB +/- 1
Transmission gain: 13dB +/- 1
Input trigger power: 3dBm to 20dBm
Maximum output power: 36dBm (4W)
Switch time delay: 1us

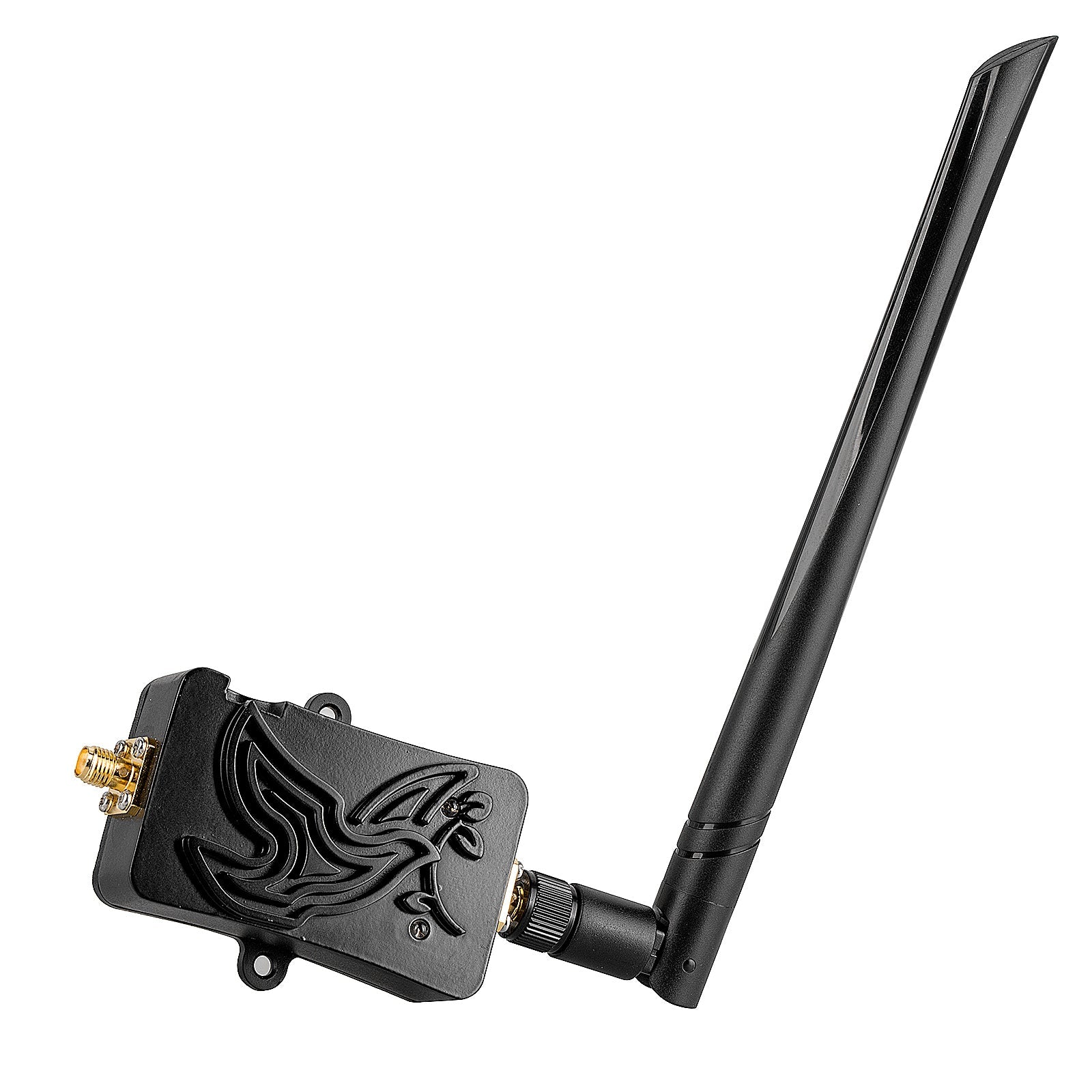

Antenna length: 7cm (2.75 inch)

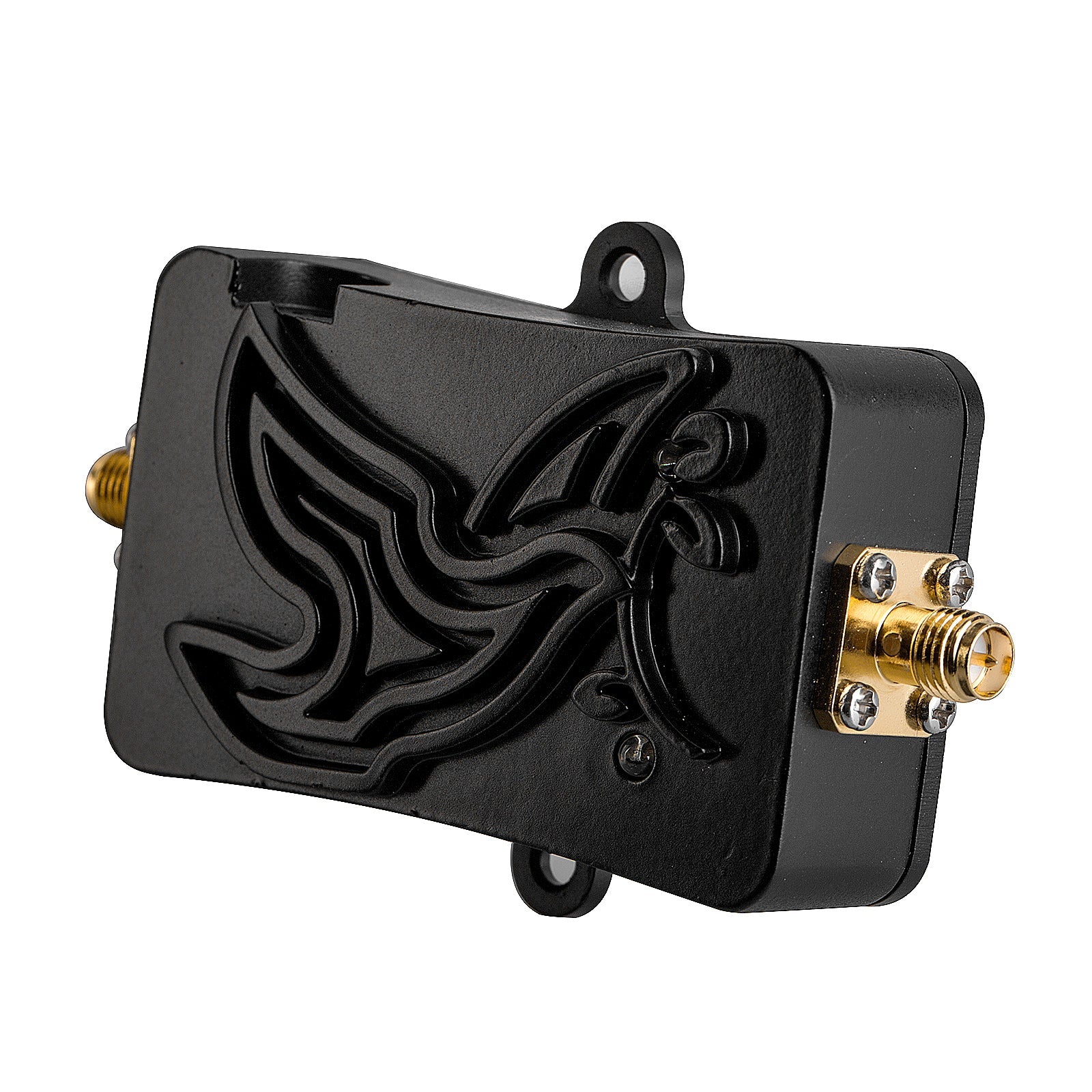

Booster size: 95 x 50 x 19mm (3.74 x 1.96 x 0.74 inch)
