Aluminum Enclosure

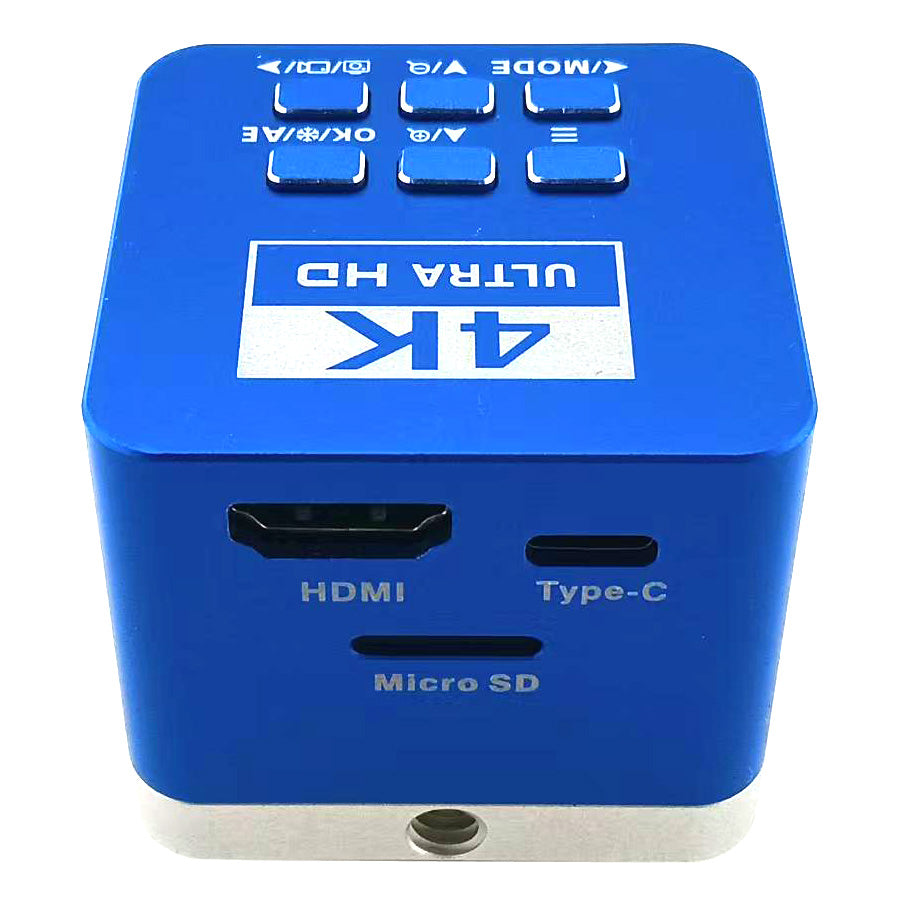

Introducing C4K microscope camera, at the core of the design is a heat-forged aluminum unibody enclosure that maximizes performance and durability, for long time reliable video inspection.

True 4K Video

Sony CMOS sensor, it provides 3048x2160 true 4K HDMI video resolution. You could make detail inspection under ultra high resolution, and take photo (1080P) or record video (1080P).

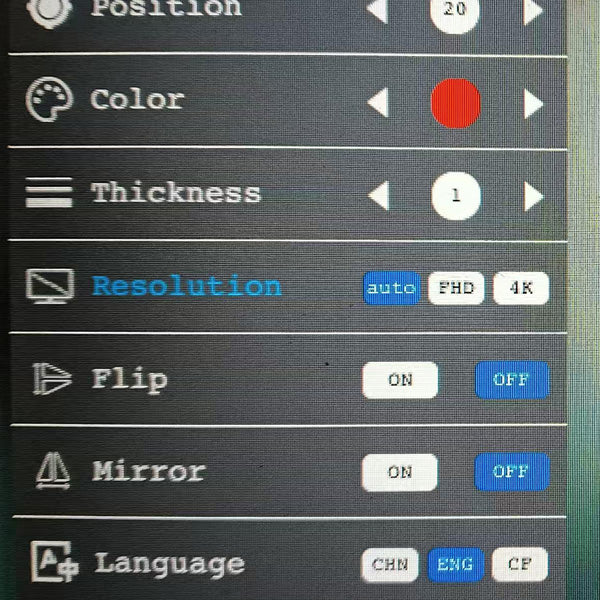

OSD menu with settings for position, color, thickness, resolution, flip, mirror, and language on QAREQU 4K microscope camera.

Resolution Option

Choose 4K if using 4K monitor, if not choose FHD. It cannot be reverted if choosing 4K but using non-4K monitor. Auto is the best choice.

CS-Mount Interface

CS- / C-mount compatible, by mounting on industrial microscope or equipped with different zoom lens, it is easy for manufacturing inspection or quality control.

Take Total Control

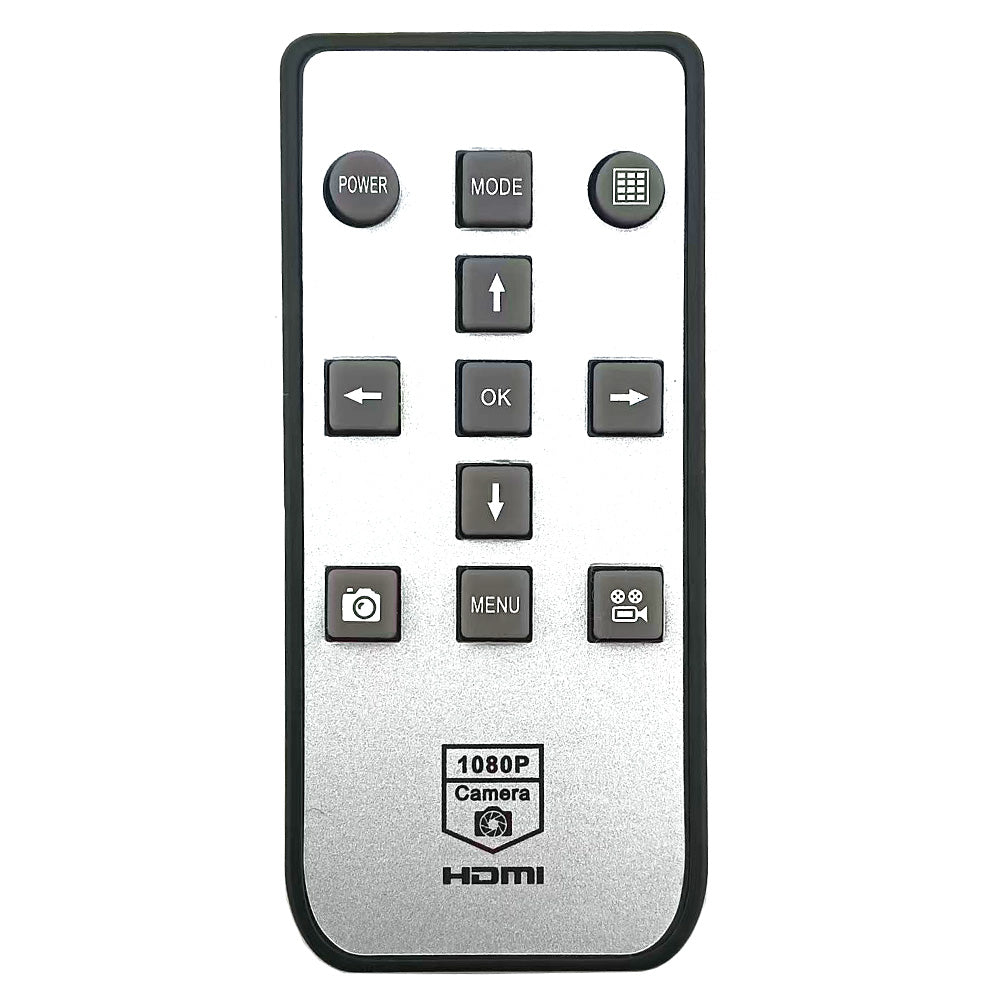

Now you can take the perfect photo or video in real time. Simply press button on camera, or via remote control. Wireless control give you stable way to shot without losing focus on your subject.

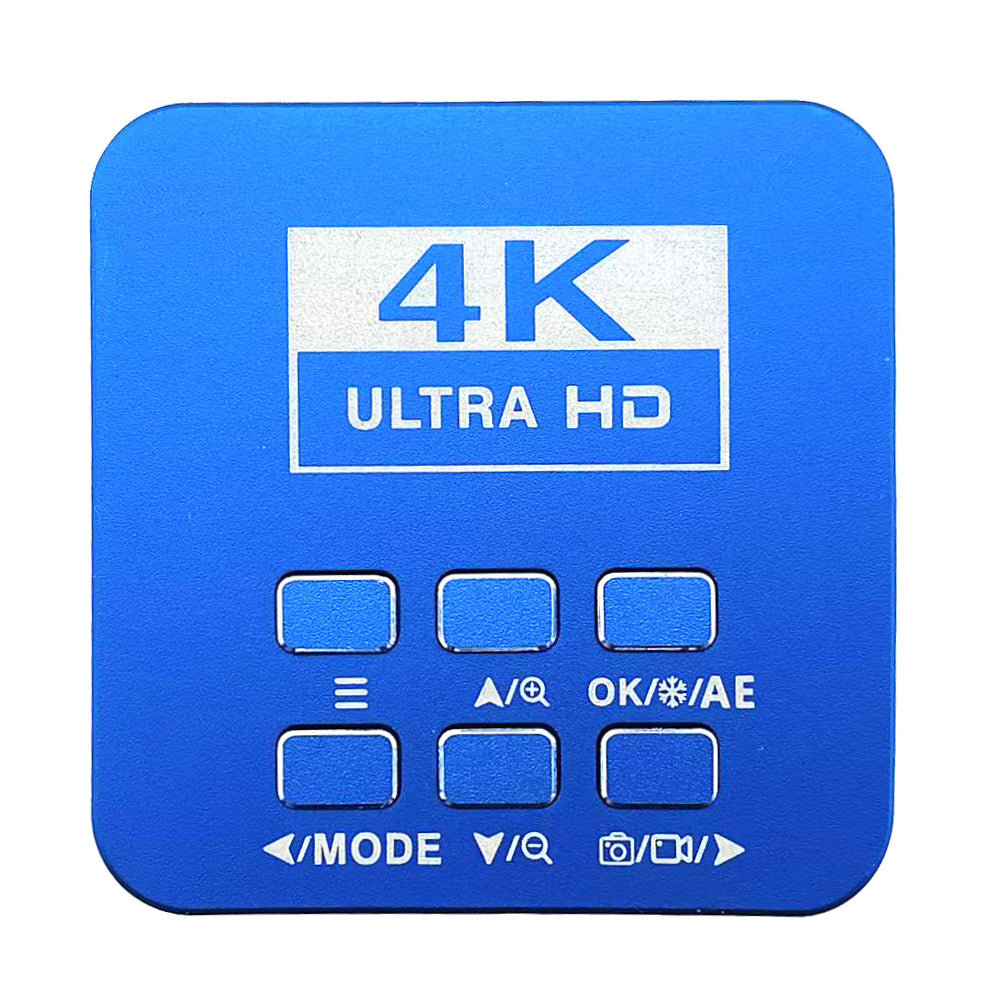

  • QAAREQU C4K microscope camera control panel with 6 buttons

    6-button control the camera, include menu setting, photo taking, video recording, etc.

  • Keep control the camera even you are short distance away from it.

Specifications

  • Model: C4K
  • Sensor Type: CMOS
  • Sensor Optical Format: 1/2.8"
  • Video Output Resolution: 3048x2160@30fps
  • Video Record Resolution: 1920x1080
  • Video Record Format: MP4
  • Photo Capture Resolution: 1920x1080
  • Photo Capture Format: JPG
  • Storage Media: Micro SD card (max 64GB)
  • Connectivity: HDMI
  • Lens-mount: CS-mount
  • Power: DC 5V 1A
  • Size: 47.5 x 47.5 x 50mm (1.87 x 1.87 x 1.97 inch)
  • Weight: 145g (0.32 lb)
